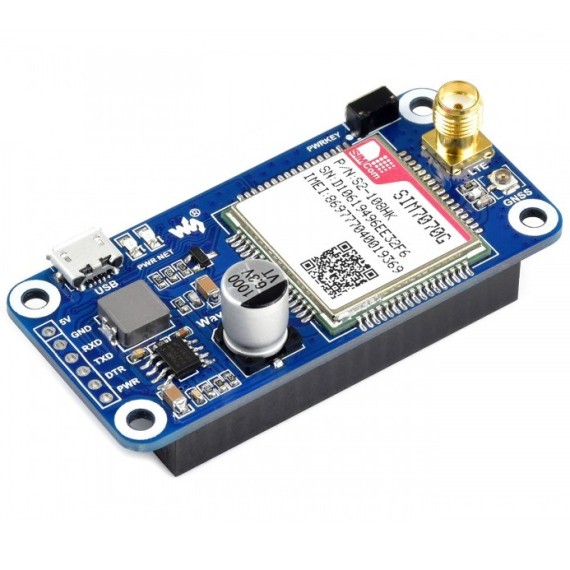

Waveshare NB-IoT/Cat-M/GPRS/GNSS HAT - SIM7070G

SIM7070G NB-IoT / Cat-M / GPRS HAT For Raspberry Pi, Global Band Support, With GNSS Positioning NB-IOT / CAT-M / GPRS / GNSS HAT Low Power Narrow...
31-00018078
Company: Waveshare
Part Number: 18078
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
39.90
Without VAT 32.18
+
WISHLIST COMPARE

DESCRIPTION

SIM7070G NB-IoT / Cat-M / GPRS HAT For Raspberry Pi, Global Band Support, With GNSS Positioning

NB-IOT / CAT-M / GPRS / GNSS HAT

  • Low Power Narrow Band Cellular IoT Communication Module For Raspberry Pi
  • Based on SIM7070G, Global Band Support

This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.

Compared to SIM7080G, this module also supports GPRS (2G); compared to SIM7000C/E, it is more generic due to the global bands support.

Features

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  • Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300~3686400 bps
  • Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards



THE PACKAGE INCLUDES

  1. SIM7070G Cat-M/NB-IoT/GPRS HAT x1
  2. LTE Antenna x1
  3. GPS External Antenna (B) x1
  4. USB-A to Micro-B cable x1
  5. Standoffs pack x1
12345

Global Band Support Of NB-IoT/Cat-M/2G

  • NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
  • Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • GSM/GPRS/EDGE: 850/900/1800/1900MHz

Cloud Communication

Supports Communication Protocols Including TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT

GNSS Positioning

Supports GPS, BeiDou, GLONASS, Galileo Positioning

What's On Board



  1. SIM7070G
  2. MP1482 power chip
  3. RT9193-33 power chip
  4. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  5. USB interface
    for testing AT Commands, getting GPS positioning data, etc.
  6. SIM7070G control interface
    for connecting with host boards like Arduino/STM32
  7. SIM card slot
    supports 1.8V SIM card ONLY
  8. GNSS antenna connector
  9. LTE antenna connector
  1. Module power key
  2. Network status indicator
  3. Power indicator
  4. Operating voltage selection
    A: set IO level as 5V
    B: set IO level as 3.3V (default)
  5. DTR selection
    A: DTR is connected to P26
    B: DTR is disconnected (default)
  6. PWR selection
    A: PWR is connected to P4 (default)
    B: PWR is connected to power supply

Pinout Definition



SPECIFICATIONS

HAT Type:
  • Wireless Communication
Raspberry Compatible:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Zero
  • Zero W

SPECIFICATIONS

  • NB-IOT/CAT-M/2G
    • Band:
      • NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
      • Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
      • GSM/GPRS/EDGE: 850/900/1800/1900MHz
    • Data rate:
      • NB-IoT: 136Kbps(DL)/150Kbps(UL)
      • Cat-M: 589Kbps(DL)/1119Kbps(UL)
      • GPRS: 85.6Kbps(DL)/85.6Kbps(UL)
      • EDGE: 236.8Kbps(DL)/236.8Kbps(UL)
    • SIM card support: NB-IoT/Cat-M/2G card (1.8V SIM card ONLY)
    • Applicable region: Global
  • GNSS
    • Receiver type:
      • 16-channel
      • C/A Code
    • Band:
      • GPS L1: 1575.42 ± 1.023MHz
      • GLONASS L1: 1598.0625 ~ 1605.375MHz
      • BDS B1: 1559.052 ~ 1591.788MHz
      • Galileo L1: 1575.42 ± 1.023MHz
    • Data format: NMEA-0183
    • Antenna: Active antenna
  • Other
    • Power supply: 5V
    • Operating voltage: 5V / 3.3V (configured via 0Ω resistor)
    • Current consumption: about 41mA (idle mode)
    • Operating temperature: -40°C ~ 85°C
    • Storage temperature: -45°C ~ 90°C
    • Dimensions: 30.50x65.00mm

Outline Dimensions
