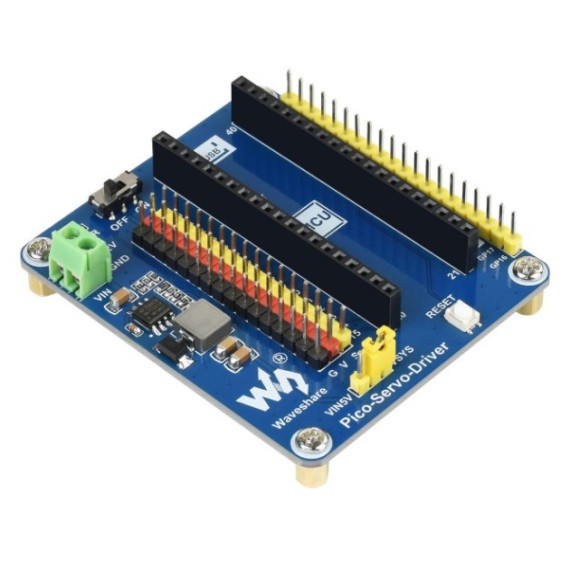

Waveshare Pico Servo Driver Module 16-Channel 16-bit

Servo Driver Module   For Pico Ideal For Controlling Robotic Arm Or Hexapod Walker Raspberry Pi Pico Header Compatibility Onboard Female...
31-00019767
Company: Waveshare
Part Number: 19767
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
14.80
Without VAT 11.94
+
WISHLIST COMPARE

DESCRIPTION

Servo Driver Module For Pico

Ideal For Controlling Robotic Arm Or Hexapod Walker

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Standard Servo Interface

Supports Common Used Servo Like: SG90, MG90S, MG996R



NOTES

Onboard 5V Regulator

Flexible Power Options: Powered From Pico Directly, Or From VIN Battery Input Terminal With Max 3A Current Output

Application Example

Pinout Definition

SPECIFICATIONS

HAT Type:
  • Motor Driver
Raspberry Compatible:
  • Pico

SPECIFICATIONS

  • Operating Voltage:
    • 5V (Pico)
    • 6~12V (VIN terminal)
  • Logic Level: 3.3V
  • Mounting Hole Size: 3.0mm
  • Servo Voltage Level: 5V
  • Control Interface: GPIO
  • Dimensions: 65x56mm

FEATURES

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Up to 16-Channel servo/PWM outputs, 16-bit resolution for each channel
  • Integrates 5V regulator, up to 3A output current, allows battery power supply from the VIN terminal
  • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
  • Exposes unused pins of Pico, easy expansion
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
