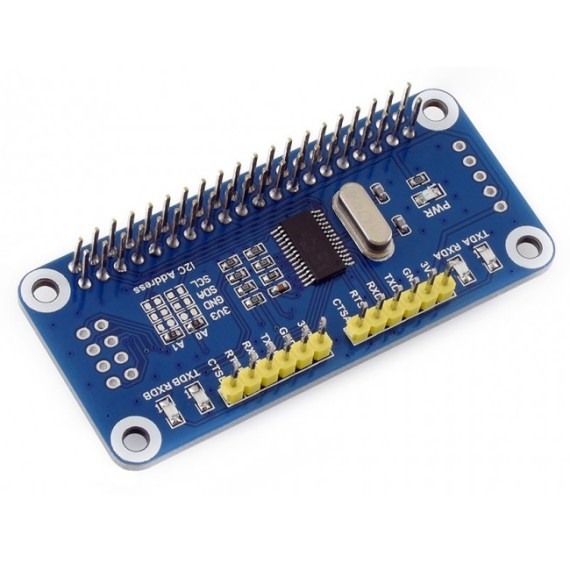

Waveshare Serial Expansion HAT

από WAVESHARE
There is only 1-ch UART port on the original Raspberry Pi, once it is used for terminal debugging, no more other serial device is allowed. What a poor...
31-00015667
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 15667
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
15.90
Χωρίς ΦΠΑ 12.82
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 14.31

ΠΕΡΙΓΡΑΦΗ

There is only 1-ch UART port on the original Raspberry Pi, once it is used for terminal debugging, no more other serial device is allowed. What a poor situation. Now you have 2-ch extra UART, plus 8 programmable GPIOs, just bring this Serial Expansion HAT.

  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Onboard SC16IS752, expands 2-ch UART and 8 programmable GPIO through I2C, no extra pin required
  • It is stackable up to 16 this modules by setting the address jumper, that means up to 32-ch UART
  • Onboard multi LEDs for indicating the UART working status
  • Reserved I2C control pins, allows to work with other control boards
  • Comes with development resources and manual (examples in C and python)



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. Serial Expansion HAT x1
  2. RPi screws pack (2pcs) x1
12



ΣΗΜΕΙΩΣΕΙΣ

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Prototyping
Κατασκευαστής
:
WAVESHARE
Part Number:
15667
Μικτό Βάρος:
0.018kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating voltage: 3.3V
  • Expansion chip: SC16IS752
  • Control interface: I2C
  • Dimension: 65x30mm
  • Mounting hole size: 3.0mm
