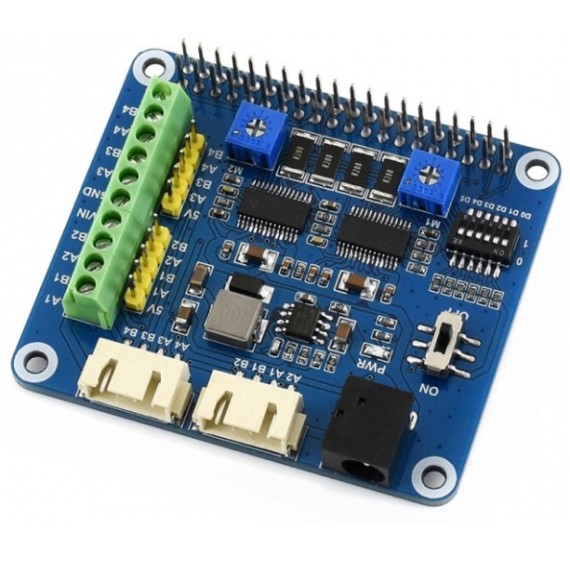

Waveshare Stepper Motor HAT

από WAVESHARE
This Stepper Motor HAT gives your Raspberry Pi the ability to drives two stepper motors at the same time, supports up to 1/32 microstepping....
31-00015669
Ογκομετρικό βάρος: 0.03kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 15669
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
31.00
Χωρίς ΦΠΑ 25.00
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 27.90

ΠΕΡΙΓΡΑΦΗ

This Stepper Motor HAT gives your Raspberry Pi the ability to drives two stepper motors at the same time, supports up to 1/32 microstepping.

  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Onboard dual DRV8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
  • 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Adjustable motor drive current via potentiometer, maximum 2.5A current output
  • Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
  • Integrates 5V regulator, allows providing power to Raspberry Pi
  • Onboard multi connector options for stepper motors in different specifications
  • Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
  • Applications
    • 3D Printer
    • Sculpturing machine
    • Mechanical arm



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. Stepper Motor HAT x1
  2. RPi screws pack (2pcs) x1
12

ΣΗΜΕΙΩΣΕΙΣ

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Motor Driver
Κατασκευαστής
:
WAVESHARE
Part Number:
15669
Μικτό Βάρος:
0.033kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Motor controller: DRV8825
  • Motor drive voltage: 8.2V~28V
  • Motor drive current: 2.5A
  • Logic voltage: 3.3V
  • Dimension: 65x56mm
  • Mounting hole size: 3.0mm
