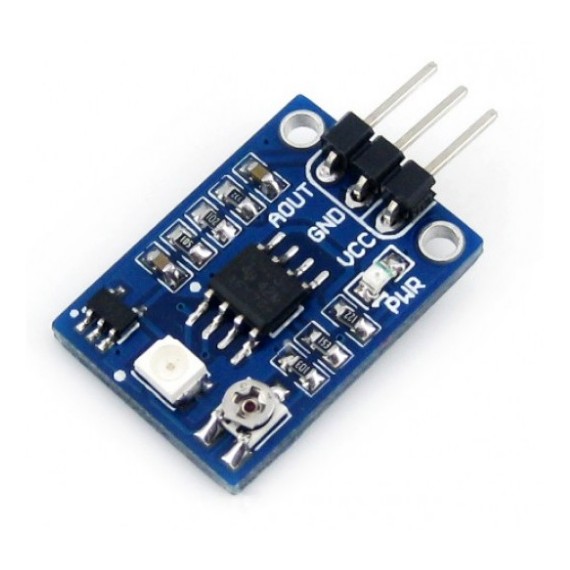

Waveshare UV Sensor

Output voltage boosts along with the ambient ultraviolet intensity increases Onboard amplifier circuit with adjustable amplification factor
31-00009537
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
8.90
Without VAT 7.18
+
WISHLIST COMPARE

DESCRIPTION

  • Output voltage boosts along with the ambient ultraviolet intensity increases
  • Onboard amplifier circuit with adjustable amplification factor

SPECIFICATIONS

Sensor Type:
  • UltraViolet
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Interface:
  • Analog
Communication Protocol:
  • Without

EXTRA SPECIFICATIONS

  • Response spectrum: 200nm-370nm
  • Mounting holes size: 2.0mm

FEATURES

  • Ultraviolet tester
  • Outdoor ultraviolet detector
  • Germicidal lamp

Dimensions

  • 22x16mm

Connection

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5.0V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
