Wind Speed Transmitter - RS485

SKU:

25-00016620

Part Number: SEN0483

CompanyDFRobot Part NumberSEN0483

Pre Order

This product will be back in stock on Friday, 13 December 2024

€55⁸⁰

+ −

Ask a question

Availability in Retail Store

Payments & Shipping

Description
Specifications

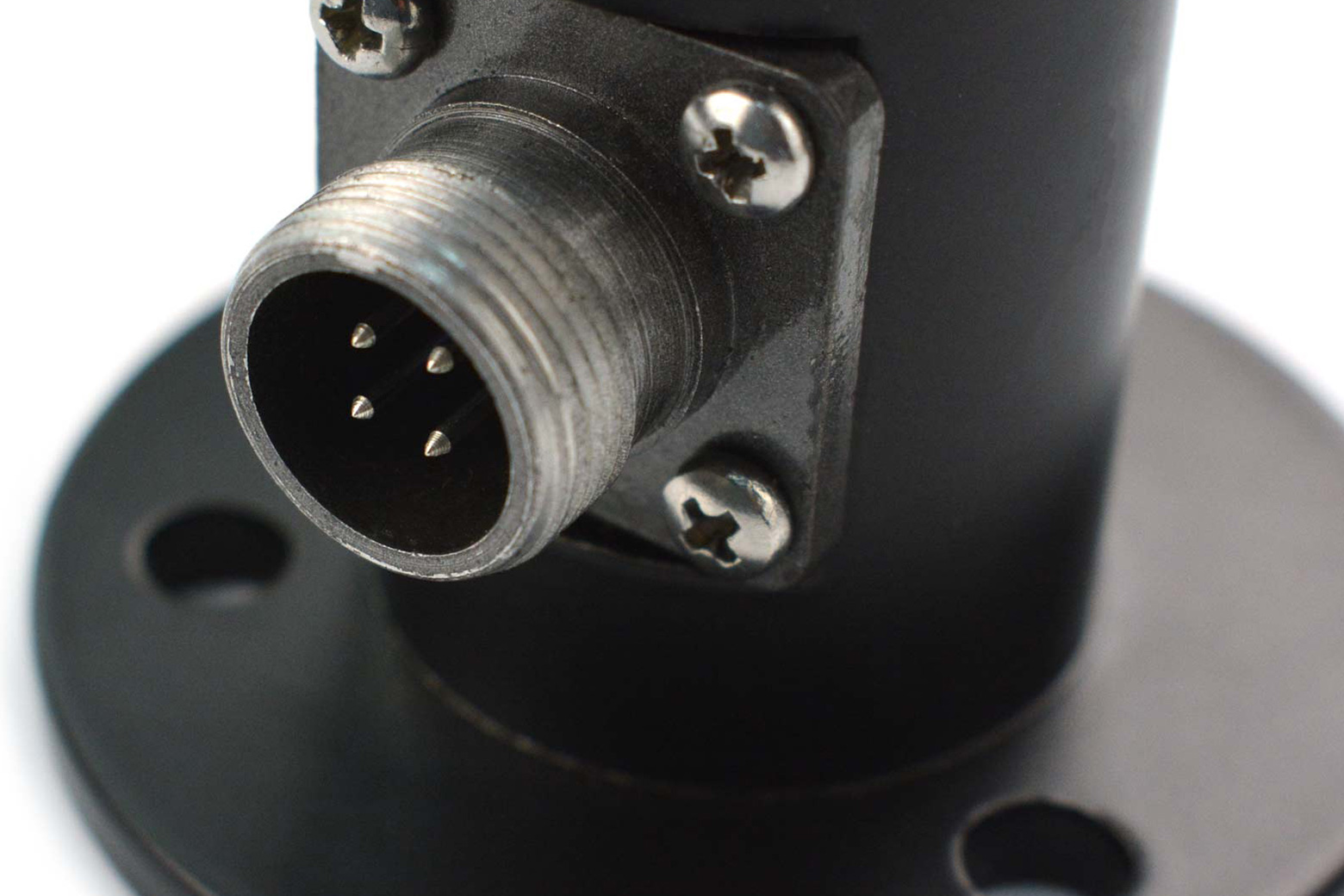

This wind speed sensor is a professional meteorological instrument used to measure horizontal wind speed within 0~32.4m/s. It integrates a hall sensor inside. The shell and wind cups are made of aluminum alloy material and use special mold precision die casting process, featuring small dimension tolerance and high surface accuracy. The sensor internal circuit is protected, which makes the sensor have the properties of high strength, weather resistance, anti-corrosion, and waterproof. The cable connector adopts corrosion-resistant military plug that ensures the long service life of the product.

A low-inertia anemometer is used to sense the wind speed. When the wind blows the wind cup to rotate, it drives the axle magnet to rotate through the shaft, then the accurate wind speed information can be obtained after calculation. This high-cost performance sensor can be widely used in meteorology, ocean, environment, airports, ports, laboratories, industry, agriculture and transportation.

THE PACKAGE INCLUDES

1x RS485 Wind Speed Transmitter
1x 2.5m Wire

Measuring Range: 0~32.4m/s
Start-Up Wind Speed: 0.2-0.4m/s
Accuracy: ±0.3m/s
Lead Length: 2.5m/98.43”
Power Voltage: 7-24V
Communication Protocol: RS485 interface Modbus protocol

Compact size, easy to install, portable
The surface of aluminum alloy material is sprayed with plastic, anti-corrosion and high-temperature resistance
Quality bearings, low resistance, low start-up wind speed
