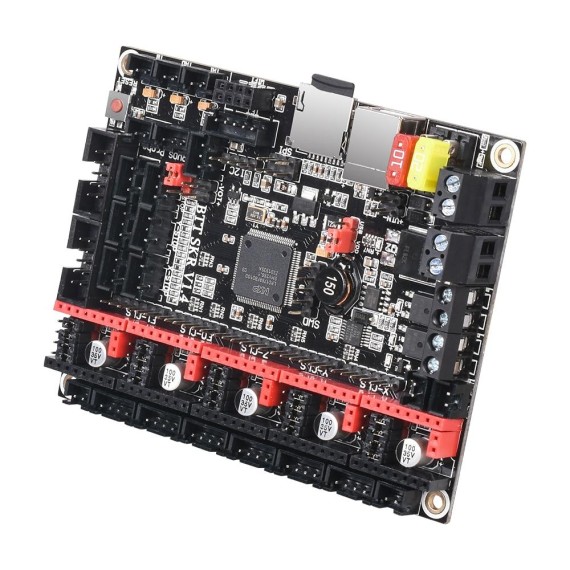

3D Printer Controller Board 32 Bit - SKR V1.4

από BIQU
Η μητρική πλακέτα 32bit SKR V1.4 είναι μια αναβάθμιση της εξαιρετικά δημοφιλές 32bit SKR V1.3 από την Bigtreetech. Έχει πλέον περισσότερα διαθέσιμα add ons και διπλή έξοδο για stepper motor στον άξονα Ζ. Κατάλληλη για μικρούς και μεσαίους εκτυπωτές. Χρησιμοποιώντας τον επεξεργαστή ARM Cortex-M3 (LPC1768) στα 32-bit με 100MHz η απόδοση έχει βελτιωθεί σημαντικά. Εξοπλισμένη με το firmware ανοιχτού κώδικα Marlin2.0, το οποίο είναι βολικό για τους χρήστες σε DIY. Υποστηρίζει συνέχιση εκτύπωσης μετά από διακοπή ρεύματος, ανίχνευση σπασίματος νήματος, αυτόματη απενεργοποίηση μετά την εκτύπωση κ.α.
59-00018839
Ογκομετρικό βάρος: 0.16kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: BIQU
Χώρα Προέλευσης: Κίνα
Εξαντλημένο
Το προϊόν δεν είναι διαθέσιμο
Χωρίς απόθεμα στο φυσικό κατάστημα
34.90
Χωρίς ΦΠΑ 28.15

Συναινώ ώστε η εταιρεία (GRobotronics) να προσθέσει την διεύθυνση ηλεκτρονικού μου ταχυδρομείου στην λίστα ώστε να λάβω ενημέρωση όταν το προϊόν θα είναι ξανά διαθέσιμο. Μόλις το προϊόν γίνει ξανά διαθέσιμο θα λάβω αυτόματα ενημέρωση στο email αυτό και αμέσως θα αφαιρεθεί από την συγκεκριμένη λίστα.

Το email σου θα χρησιμοποιηθεί αποκλειστικά για τον σκοπό αυτό και καμία άλλη ενημέρωση δεν θα λάβεις. Θα είναι ορατό μόνο από συγκεκριμένους εξουσιοδοτημένους υπαλλήλους της εταιρείας.

Έχετε το δικαίωμα σε περίπτωση κατά την οποία θεωρείτε ότι η επεξεργασία που γίνεται δεν είναι σύμφωνη με τα ανωτέρω να αναζητείτε την προστασία της Αρχής Προσωπικών Δεδομένων και να ζητήσεις να διαγράψουμε ή να μεταβάλλουμε τα δεδομένα σου. Είμαστε υποχρεωμένοι σύμφωνα με τον κανονισμό της ΕΕ για την Προστασία των Γενικών Προσωπικών Δεδομένων να σε ενημερώσουμε για αυτό το δικαίωμα. Έχετε την δυνατότητα να επικοινωνείτε όποτε επιθυμείτε με την εταιρεία ώστε να ενημερωνόσαστε σχετικά με τα προσωπικά σας δεδομένα στο email [email protected]

ΑΓΑΠΗΜΕΝΑ ΣΥΓΚΡΙΣΗ

ΠΕΡΙΓΡΑΦΗ

SKR V1.4 motherboard uses 32-bit main frequency 100MHz ARM-class Cortex-M3 series LPC1768 master chip. Four-Layer Circuit Board, Gold deposition technology,and obtain CE certification. Equipped with highly modular and open source firmware Marlin2.0 and Smoothieware, it is convenient for users to DIY and secondary development, and can avoid worries of not mastering the core code. Support I2C, SPI and WiFi interfaces to DIY. The SPI and UART working mode driven by the TMC driver, also having the DIAG pin, which eliminates complex wiring process and can be used by simple unplugging jumper cap. Reserved extended port SERVOS of PWM signal to support BL Touch, Support 2.8-inch and 3.5-inch color touch screens, support 2004 LCD and 12864 LCD. Double z-axis interface, eliminating the trouble of external drive expansion module. Support Resume Printing While Power Off, Filament Break Detection, Automatic Shutdown After Printing and other functions.



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1x Motherboard SKR V1.4
  • 1x USB cable A to B



ΣΗΜΕΙΩΣΕΙΣ

  • When using smoothieware open source firmware, many functions on SKR V1.4, such as 2130SPI, 2208UART, LCD screen and so on, can not be used. Only Malin firmware can show all the functions of SKR V1.4.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
BIQU
Μικτό Βάρος:
0.16kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Item Type: Motherboard
  • Model Number: SKR V1.4
  • Material: 4-layer PCB
  • Input Voltage: DC12V - DC24V
  • Current: 5A - 15A
  • Logic voltage: DC 3.3V
  • Main control chip: LPC1768
  • Microprocessor: ARM cortex-M3 CPU
  • WIFI module: ESP-01S (not included)
  • Appearance size: 110x85mm
  • Motor driver support:
    • TMC5161, TMC5160, TMC2209, TMC2225, TMC2208, TMC2130
    • ST820, LV8729, DRV8825, A4988 etc.
    • Independent external motor drive.
  • Driver working mode support: SPI, UART, STEP/DIR
  • Motor driver interface: X, Y, Z, E0, E1, 5 way (Each has a closed loop drive interface) up to 256 subdivisions
  • Temperature sensor interface: TH0, TH1, TB, 3 channel 100K NTC Temperature
  • Firmware support: Marlin2.0 , Smoothieware
  • Display support: 2.4", 2.8", 3.5" TFT (Support dual mode screen), LCD2004, LCD12864
  • Expand the interface function support:
    • Resume Printing While Power Off, Filament Break Detection,
    • Automatic Shutdown After Printing, Automatic leveling, BL Touch
  • PC communication interface: Square USB, easy to plug, communication baudrate of 115200
  • Recommended software: Cura, Simplify3D, pronterface, Repetier-host, Makerware
  • Support file format: G-code
  • Supported machine architecture: XYZ, delta, kossel, Ultimaker, CoreXY

ΔΥΝΑΤΟΤΗΤΕΣ

  • Using 32-bit main frequency 100MHz ARM level Cortex-M3 series LPC1768 main control chip, the performance has been greatly improved
  • Equipped with highly modular and open source firmware Marlin2.0, which is convenient for users to DIY and secondary development
  • Using dedicated power chip M6130, support 12-24V power input
  • Support 2.4, 2.8, 3.5 inch color touch screen, support LCD2004 screen, LCD12864 screen
  • Upgrade and configure the firmware through SD card, which is simple, convenient and efficient
  • The SPI and UART working mode driven by the TMC driver, also having the DIAG pin, which eliminates complex wiring process and can be used by simple unplugging jumper cap
  • Support Resume Printing While Power Off, Filament Break Detection, Automatic Shutdown After Printing and so on
  • High performance MOSFET tube, better heat dissipation effect
  • Using removable fuse makes the replacement process easier
  • Reserved extended port SERVOS and Probe to support BL Touch
  • Support RGB Neopixel light bar
  • Use the power selection design to separate the USB power supply from the switch power supply, effectively avoiding the situation that the USB port of the computer is burnt out due to short circuit
  • The special function interface uses the row needle with conspicuous color, which greatly reduces the error rate of wiring.
  • I2C, SPI and WIFI interfaces are reserved for convenience of DIY
  • Closed-loop drive interface is reserved to reduce the trouble of plug-in switching module
  • Double z-axis interface, eliminating the trouble of external drive expansion module
  • The thermistor interface is protected by a bile capacitor pressurized resistor to enhance the resistance of the interface
  • More fan interfaces: 1 way CNC fan, 3 way normally open fan
  • Plug-in external DC5V power supply module to supply power to TFT screen, BLtouch and Neopixel
