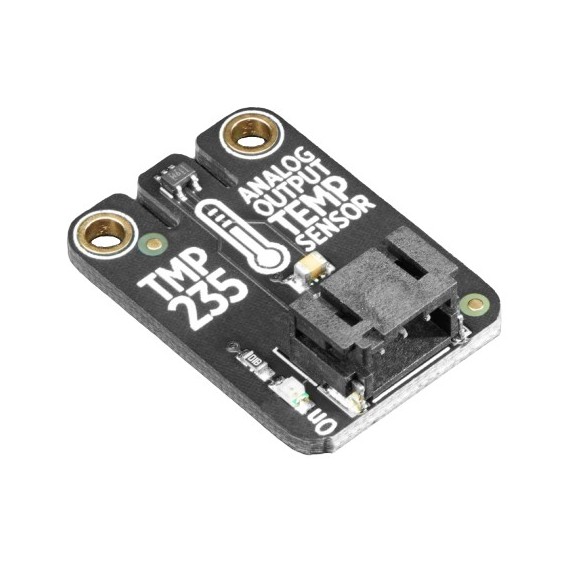

Adafruit Αισθητήρας Θερμοκρασίας Αναλογικός Plug-and-Play STEMMA - TMP235

από Adafruit
For fans of the TMP36 , we now have a very similar analog temperature sensor with a 3-pin JST connector (we call these STEMMA connectors). Unlike many of...
09-00004686
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Adafruit
Part Number: ADA4686
Χώρα Προέλευσης: ΗΠΑ
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
3.40
Χωρίς ΦΠΑ 2.74
+

ΠΕΡΙΓΡΑΦΗ

For fans of the TMP36, we now have a very similar analog temperature sensor with a 3-pin JST connector (we call these STEMMA connectors). Unlike many of our temperature sensors, this one is analog output, not I2C, so its best used by a microcontroller with an analog input, as most microcontrollers do.

These sensors are very simple to use, no libraries or complex configurations required. Plug this board into any of our 3-pin JST PH cables (we have ones with header ends, alligator clips, etc) Red goes to 3V to 5V DC power, black wire connects to ground, and white wire connects to an analog input. The voltage out is 0V at -50°C and 1.75V at 125°C. You can easily calculate the temperature from the voltage in millivolts: Temp °C = 100*(reading in V) - 50

Like with the TMP36, you'll get the best readings out of an Arduino UNO or compatible if you set the analog reference voltage to external, then connect AREF to 3.3V for a stable analog reference.



NOTES

  • JST PH 3-pin cable is not included

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Adafruit
Part Number:
ADA4686
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
ΗΠΑ
Τύπος Αισθητήρα:
  • Θερμοκρασίας
Τυπική Τάση Εισόδου:
  • 3VDC
  • 5VDC
Διασύνδεση:
  • Αναλογική
Πρωτόκολλο Eπικοινωνίας:
  • Χωρίς

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Dimensions: 25.5x17.7x7.2mm
  • Weight: 2.0g
