Arcade Joystick with 5-pin Connector

by OEM
This clicky joystick is great for DIY arcade builds, and it has a handy 5-pin connector that means connecting it is just a case of plugging in a single...
13-00010810
Company: OEM
Part Number: COM-B015
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
7.90
Without VAT 6.37
+
WISHLIST COMPARE

DESCRIPTION

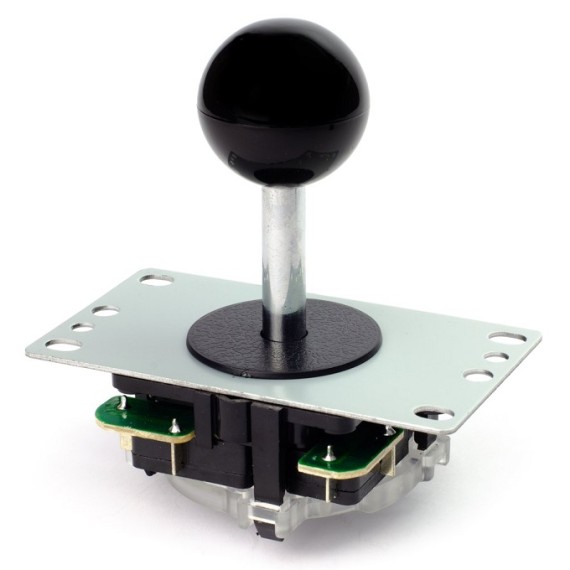

This clicky joystick is great for DIY arcade builds, and it has a handy 5-pin connector that means connecting it is just a case of plugging in a single cable connector.

We use this joystick in our new Picade and it's solid, responsive, and reliable. The feel is a little looser than the Zippyy joystick that we sell, more similar to a Japanese joystick. Pair it with a Raspberry Pi, Picade X HAT, and some arcade buttons and you've got all the controls you need to build your own arcade machine!



Notes

  • Pinout: up, down, right, left, ground (from pin closest to centre)
  • Overall dimensions (including ball-top): 106x70x95mm
  • Mounting plate dimensions: 60x95mm
  • Corner hole centres (5mm holes): 44x82mm
  • Centre hole centres (6mm holes): 85mm

EXTRA SPECIFICATIONS

  • 35mm black ball top
  • Black dust cover
  • 8-way square restrictor gate
  • 9mm diameter, 36mm tall shaft
  • 5-pin connector (compatible with JST-XH cable)
