Arcade Push Button Mini 32mm - White

by OEM

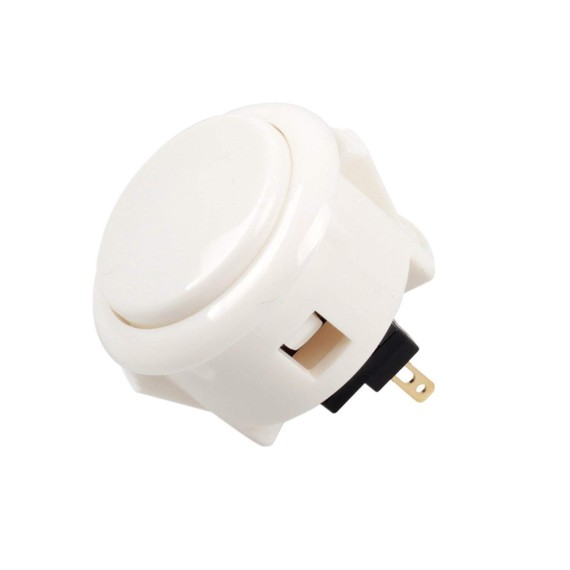

This is a 30mm snap-in style arcade button with built in microswitch, which has 2.8mm terminals. This button is mainly used as a start/select button for...
39-00017117
Gross Weight: 0.01kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
0.80
Without VAT 0.65
+
Our quantity discounts:
Quantity 10+ 100+
Price 0.64 0.56
WISHLIST COMPARE

DESCRIPTION

This is a 30mm snap-in style arcade button with built in microswitch, which has 2.8mm terminals. This button is mainly used as a start/select button for arcade machines or fight sticks. This button can be mounted in a control panel of any material provided it is around 2 - 4mm thick.

SPECIFICATIONS

Contacts configuration :
  • SPST-NO
Switching method :
OFF-(ON)
DC or AC Rating:
3A / 120VAC
Leads for:
Flat Terminal

SPECIFICATIONS

  • Color: White
  • Flat terminals: 2.8mm

Διαστάσεις

  • Bezel diameter: 32.3mm
  • Button diameter 24.15mm
  • Hole diameter: 30mm
  • Overall height: 31.5mm
