Arduino Mega 2560 Rev3

02-00010303
A000067
USB Cable 2.0 A to B - 0.5m Grey
Electronics Base Kit for Beginners
Jumper Wires 15cm Male to Male - Pack of 10
Breadboard 400 Clear Self-Adhesive

CompanyArduino Part NumberA000067
In Stock
Ships in 24 Hours
5200
Our quantity discounts:
Quantity
10+
Price
46.80
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

The MEGA 2560 is designed for more complex projects. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch it is the recommended board for 3D printers and robotics projects. This gives your projects plenty of room and opportunities.

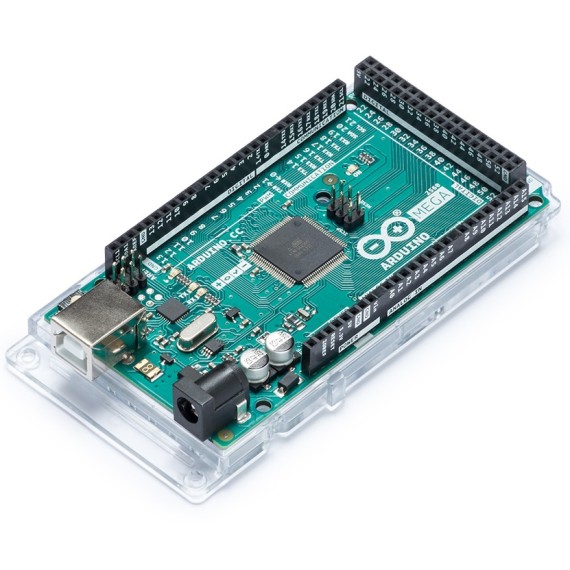

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

The Mega 2560 board can be programmed with the Arduino Software (IDE). For details, see thereference and tutorials.

The ATmega2560 on the Mega 2560 comes preprogrammed with a bootloader that allows you to upload new code to it without the use of an external hardware programmer. It communicates using the original STK500 protocol (reference, C header files).

You can also bypass the bootloader and program the microcontroller through the ICSP (In-Circuit Serial Programming) header using Arduino ISP or similar; see these instructions for details.

The ATmega16U2 (or 8U2 in the rev1 and rev2 boards) firmware source code is available in theArduino repository. The ATmega16U2/8U2 is loaded with a DFU bootloader, which can be activated by:

  • On Rev1 boards: connecting the solder jumper on the back of the board (near the map of Italy) and then resetting the 8U2.
  • On Rev2 or later boards: there is a resistor that pulling the 8U2/16U2 HWB line to ground, making it easier to put into DFU mode. You can then use Atmel's FLIP software (Windows) or the DFU programmer (Mac OS X and Linux) to load a new firmware. Or you can use the ISP header with an external programmer (overwriting the DFU bootloader). See this user-contributed tutorial for more information.

NOTES

  • This is the original board of the Arduino Mega 2560.
  • Only the basic mega 2560 board is included in the box, you can find our USB cable, 12V power supply and everything else you need for your construction.
  • Architecture: AVR
  • Product Code: A000067
  • PCB size: 101.5 x 53.3mm
  • Weight: 37g



Warranty
12 Months Manufacturer Warranty
Company
Arduino
G. Weight
0.06kg
Family
Arduino Mega
Series
Arduino Making
Microcontroller
ATmega2560
Operating Voltage
5V
Input Voltage
7-12V
Input Voltage (limits)
6-20V
Digital I/O Pins
54
Analog Input Channels
16
PWM Channels
15
DC Current per I/O Pin
40mA
DC Current for 3.3V Pin
50mA
Flash Memory
256 KB
RAM
8 KB
EEPROM
4 KB
Clock Speed
16 MHz
