Arduino Mega Enclosure - Clear Plastic ABS

19-00024014
CompanyOem
In Stock
Ships in 24 Hours
€490
Our quantity discounts:
Quantity
10+
100+
Price
€3.92
€3.43
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

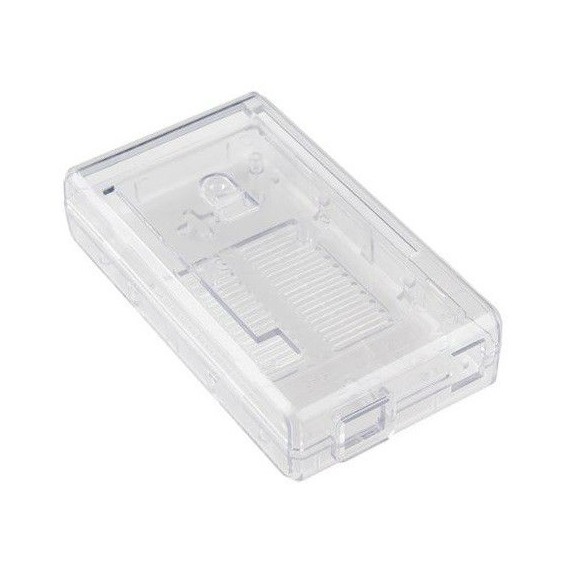

If you own an Arduino Mega, you might need this case/enclosure :) This is pretty simple yet practical casing designed for Arduino Mega. It offers plenty of inner space, and if you need to access the GPIO of Arduino Mega, the top cover has an opening for it. It is perfect casing for educator, beginner, or maker that need to access the GPIO. With its transparent color and build using ABS to provide rugged protection to your Arduino Mega.

The case comes in two parts so you can simply snap it together, no screws or nuts needed. There is a base plane, where you should place the Arduino Mega board. Arduino Mega fit into the base plane nicely, no screw is needed to secure the Arduino. The best part for this enclosure is you can access all the pins and ports on the Arduino Mega.  This case suitable for Funduino Mega Compatible. You can use this case with Arduino Mega 2560 R3 too but please note that you cannot access the Reset button as the reset button is next to a USB connector (for the new model).

You can use this case for Arduino Uno too. Don't worry about the extra space when you put Arduino Uno inside it as it will not affect the position of Arduino board. The Arduino board is tightly positioned inside the case :) Same case with Arduino 2560 Mega R3. When you use this case with Arduino Uno, you cannot access the Reset button.



NOTES

  • The subject of the sale is a plastic case modules Arduino can be purchased separately.
  • If you want to use this case with Arduino 2560 Mega R3, you need to remove the base first before putting it into this case. Again, you cannot access the Reset button if you are using this case with Arduino 2560 Mega R3.

  • Color: Transparent
  • Material: ABS
  • Dimensions: 111x60x17mm
  • Weight: About 40g
  • It provides tough protection for Arduino Mega while providing access to all connectors.
  • Easy access to each header, USB port, power jack, the reset button, etc.
  • Includes reset key for use with the Mega's reset button. Secondary screw-mounting points for securing for Arduino.
Company
Oem
Warranty
Component, not covered by warranty
G. Weight
0.001kg
