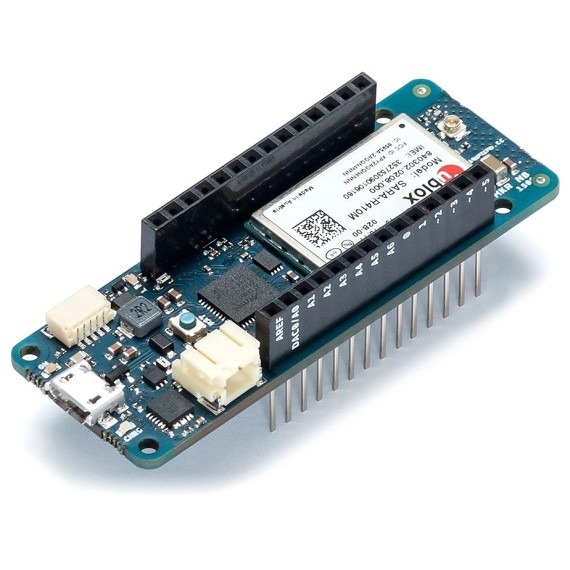

Arduino MKR NB 1500

02-00010910
ABX00019
CompanyArduino Part NumberABX00019
Upon Order
Available in 4-10 days
9990
Our quantity discounts:
Quantity
10+
Price
94.91
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

Add Narrow Band communication to your project with the MKR NB 1500. It's the perfect choice for devices in remote locations without an Internet connection, or in situations in which power isn't available (e.g., field monitoring systems).

This board is designed for global use, providing Cat M1/NB1 deployed bands 2, 3, 4, 5, 8, 12, 13, 20, 28 (Vodafone, AT&T, T-Mobile USA, Telstra, Verizon).



NOTES

  • This board does not ship with a SIM card.
  • DO NOT CONNECT to the male JST connector present on the board anything else than a Li-Po battery whose characteristics are compliant with those indicated above. Please DO NOT POWER VIN with more than 5V.

  • Microcontroller: SAMD21 Cortex®-M0+ 32bit low power ARM MCU (datasheet)
  • Radio Module: u-blox SARA-R410M-02B (datasheet / summary)
  • Secure Element: ATECC508 (datasheet)
  • Board Power Supply (USB/VIN): 5V
  • Supported Battery: Li-Po Single Cell, 3.7V, 1500mAh Minimum
  • Circuit Operating Voltage: 3.3V
  • Digital I/O Pins: 8
  • PWM Pins: 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
  • UART: 1
  • SPI: 1
  • I2C: 1
  • Analog Input Pins: 7 (ADC 8/10/12 bit)
  • Analog Output Pins: 1 (DAC 10 bit)
  • External Interrupts: 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)
  • DC Current per I/O Pin: 7 mA
  • Flash Memory: 256 KB (internal)
  • SRAM: 32 KB
  • EEPROM: no
  • Clock Speed: 32.768 kHz (RTC), 48 MHz
  • LED_BUILTIN: 6
  • Full-Speed USB Device and Embedded Host
  • Antenna Gain: 2dB (bundled antenna at the Arduino Store)
  • Carrier Frequency: LTE bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28
  • Power Class (Radio): LTE Cat M1 / NB1: Class 3 (23 dBm)
  • Data Rate (LTE M1 Half-Duplex): UL 375 kbps / DL 300 kbps
  • Data Rate (LTE NB1 Full-Duplex): UL 62.5 kbps / DL 27.2 kbps
  • Working Region: Multiregion
  • Device Location: GNSS via modem
  • Power Consumption (LTE M1): min 100 mA / max 190 mA
  • Power Consumption (LTE NB1): min 60 mA / max 140 mA
  • SIM Card: MicroSIM (not included with the board)
  • Length: 67.64 mm
  • Width: 25 mm
  • Weight: 32 gr

Li-Po batteries, Pins and board LEDs

Battery capacity

Li-Po batteries are charged up to 4,2V with a current that is usually half of the nominal capacity (C/2).  We use a specialized chip that has a preset charging current of 350mAh. This means that the MINIMUM capacity of the Li-Po battery should be 700 mAh. Smaller cells will be damaged by this current and may overheat, develop internal gasses and explode, setting on fire the surroundings. We strongly recommend that you select a Li-Po battery of at least 700mAh capacity. A bigger cell will take more time to charge, but won't be harmed or overheated. The chip is programmed with 4 hours of charging time, then it goes into automatic sleep mode. This will limit the amount of charge to max 1400 mAh per charging round.

Battery connector

If you want to connect a battery to your board be sure to search one with female 2 pin JST PHR2 Type connector.Polarity : looking at the board connector pins, polarity is Left = Positive, Right = GNDDownload here the Connector datasheet. On the board, connector is a Male 2pin JST PH Type.

VinThis pin can be used to power the board with a regulated 5V source. If the power is fed through this pin, the USB power source is disconnected. This is the only way you can supply 5v (range is 5V to maximum 6V) to the board not using USB. This pin is an INPUT.

5VThis pin outputs 5V from the the board when powered from the USB connector or from the VIN pin of the board. It is unregulated and the voltage is taken directly from the inputs. When powered from battery it supplies around 3.7 V. As an OUTPUT, it should not be used as an input pin to power the board.

VCC

This pin outputs 3.3V through the on-board voltage regulator. This voltage is the same regardless the power source used (USB, Vin and Battery).

LED ON

This LED is connected to the 5V input from either USB or VIN. It is not connected to the battery power. This means that it lits up when power is from USB or VIN, but stays off when the board is running on battery power. This maximizes the usage of the energy stored in the battery. It is therefore normal to have the board properly running on battery power without the LED ON being lit.

CHARGE LED

The CHARGE LED on the board is driven by the charger chip that monitors the current drawn by the Li-Po battery while charging. Usually it will lit up when the board gets 5V from VIN or USB and the chip starts charging the Li-Po battery connected to the JST connector.There are several occasions where this LED will start to blink at a frequency of about 2Hz. This flashing is caused by the following conditions maintained for a long time (from 20 to 70 minutes):- No battery is connected to JST connector.- Overdischarged/damaged battery is connected. It can't be recharged.- A fully charged battery is put through another unnecessary charging cycle. This is done disconnecting and reconnecting either VIN or the battery itself while VIN is connected.

Onboard LED

The onboard LED is connected to D6 and not D13 as on the other boards. Blink example or other sketches that uses pin 13 for onboard LED may need to be changed to work properly.

Additional I2C Port

The MKR NB 1500 has an additional connector meant as an extension of the I2C bus. It's a small form factor 5-pin connector with 1.0mm pitch. The mechanical details of the connector can be found in the connector datasheet.  The I2C port in addition to the SDA and SCL signals includes the GND and +5V power rails and a digital pin that might be useful when designing an expansion.  The pinout is shown in the following image:

The connector we suggest for this additional I2C Port is the SHR-05V-S-B, also in the picture.


Warranty
12 Months Manufacturer Warranty
Company
Arduino
G. Weight
0.001kg
Family
Arduino MKR
Series
Arduino Making
Microcontroller
SAMD21 Cortex-M0+ 32bit low power ARM MCU
Operating Voltage
3.3V
Digital I/O Pins
22
Analog Input Channels
7
PWM Channels
12
