Arduino MKR Connection Carrier (Grove Compatible)

02-00010700
ASX00007
CompanyArduino Part NumberASX00007
In Stock
Ships in 24 Hours
2590
Our quantity discounts:
Quantity
10+
Price
24.61
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

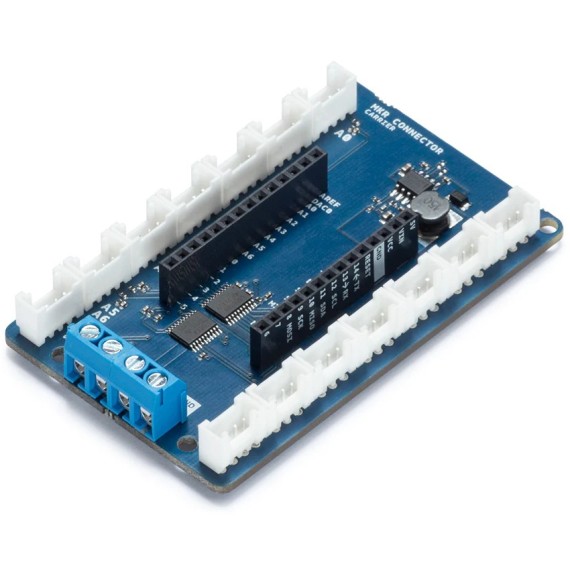

Do you have several components to connect to your project and would rather use connectors instead of soldering? The Arduino MKR CONNECTOR CARRIER provides Seeed Studio's Grove connectors to your MKR board.

The MKR CONNECTOR CARRIER shield is an essential tool for rapidly prototyping activity. It allows you to connect easily and quickly sensors with Grove connectors. This shield can allow you to build applications with different IoT connectivities by simply changing the MKR board and with almost no changes to the code.

NOTES

  • In some Boards, there is an issue with the bottom silk being mirrored.

  • Inteface: 14 Grove Connectors
    • Analog Inputs: 5 V
      • A0,A1,A2,A3,A4 single grove Analog input (detailed info)
      • A5, A6 double grove Analog input (detailed info)
    • Digital Input/Output: 5 V
      • D0,D1,D2,D3,D4 single grove I/O (detailed info)
      • D5,D6 double grove I/O (detailed info)
    • Other Connectors: One 5V I2C, One 5V UART
  • Input Voltage (Screw Terminal Block): 7V - 16V (Buck Datasheet)
  • Circuit Operating Voltage: 3.3V
  • Compatibility: MKR
Company
Arduino
Part Number
ASX00007
Warranty
12 Month Manufacturer Warranty
G. Weight
0.001kg
Family
Arduino MKR
Series
Arduino Making
