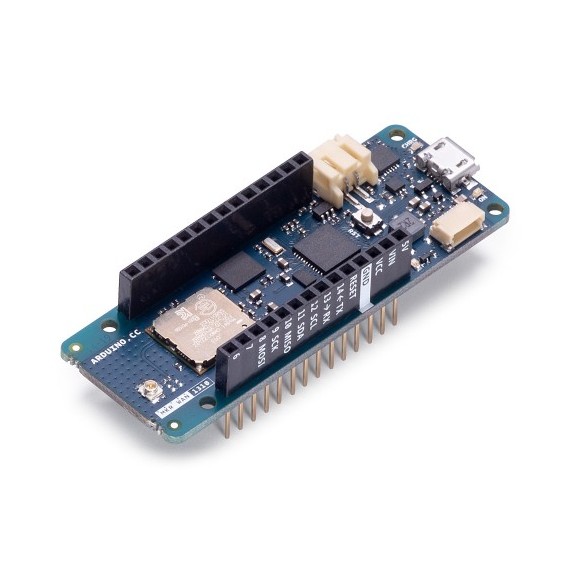

Arduino MKR WAN 1310 w/out Antenna - ABX00029

by Arduino
Connect your sensors and actuators over long distances harnessing the power of the LoRa® wireless protocol or throughout LoRaWAN™ networks. The...
02-00012307
Gross Weight: 0kg
Company: Arduino
Part Number: ABX00029
Made in: Italy
In Stock
Ships in 24 Hours
No stock in retail store
44.90
Without VAT 36.21
+
WISHLIST COMPARE

DESCRIPTION

Connect your sensors and actuators over long distances harnessing the power of the LoRa® wireless protocol or throughout LoRaWAN™ networks.

The Arduino MKR WAN 1310 board provides a practical and cost effective solution to add LoRa® connectivity to projects  requiring low power. This open source board can be connected to: the Arduino IoT Cloud, your own LoRa® network using the Arduino LoRa® PRO Gateway, existing LoRaWAN™ infrastructure like The Things Network, or even other boards using the direct connectivity mode.

Better and More Efficient

The MKR WAN 1310, brings in a series of improvements when compared to its predecessor, the MKR WAN 1300. While still based on the Microchip® SAMD21 low power processor, the Murata CMWX1ZZABZ LoRa® module, and the MKR family’s characteristic crypto chip (the ECC508), the MKR WAN 1310 includes a new battery charger, a 2MByte SPI Flash, and improved control of the board’s power consumption.

Improved Battery Power

The latest modifications have considerably improved the battery life on the MKR WAN 1310. When properly configured, the power consumption is now as low as 104uA! It is also possible to use the USB port to supply power (5V) to the board; run the board with or without batteries - the choice is yours.

On-board Storage

Data logging and other OTA (Over The Air) functions are now possible since the inclusion of the on board 2MByte Flash. This new exciting feature will let you transfer configuration files from the infrastructure onto the board, create your own scripting commands, or simply store data locally to send it whenever the connectivity is best. Whilst the MKR WAN 1310’s crypto chip adds further security by storing credentials & certificates in the embedded secure element.

These features make it the perfect IoT node and building block for low-power wide-area IoT devices.

Related Boards

If you are still deciding about the right wireless protocol for your solution, Arduino's MKR family has some alternatives to offer:

  • MKR FOX 1200: for your EU solutions on Sigfox infrastructure.
  • MKR GSM 1400: when looking at global coverage, GSM / 3G is the world's most extended network. Visit its product page here.
  • MKR NB 1500: if your solution is designed around Narrowband IoT. Read more about it here

Build Your Own Infrastructure

If you are in need ot building your own dedicated LoRa® infrastructure you should consider using the Arduino LoRa® PRO Gateway, it will let you monitor all of your MKR WAN 1310 boards directly from the Arduino IoT Cloud.

Getting Started

The Getting Started section contains all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

SPECIFICATIONS

Microcontroller:
SAMD21 Cortex-M0+ 32bit low power ARM MCU
Operating Voltage:
3.3V
Input Voltage:
5V
Digital I/O Pins:
8
Analog Input Channels:
7 (ADC 8/10/12 bit)
DC Current per I/O Pin:
7mA
Flash Memory:
256 KB
SRAM:
32KB
Clock Speed:
32.768 kHz (RTC), 48 MHz

SPECIFICATIONS

  • Radio module: CMWX1ZZABZ (datasheet)
  • Secure Element: ATECC508 (datasheet)
  • Supported Batteries: Rechargeable Li-Ion, or Li-Po
  • PWM Pins: 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
  • UART: 1
  • SPI: 1
  • I2C: 1
  • Analog Output Pins: 1 (DAC 10 bit)
  • External Interrupts: 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)
  • QSPI Flash Memory: 2MByte (external)
  • LED_BUILTIN: 6
  • USB: Full-Speed USB Device and embedded Host
  • Antenna gain: 2dB (bundled pentaband antenna)
  • Carrier frequency: 433/868/915 MHz
  • Working region: EU/US (confirmed) other countries check your region's spectrum availability
  • Dimensions:
    • Length: 67.64mm
    • Width: 25mm
    • Weight: 32gr

FEATURES

Additional I2C Port

The MKR WAN 1310 has an additional connector meant as an extension of the I2C bus. It's a small form factor 5-pin connector with 1.0 mm pitch. The mechanical details of the connector can be found in the connector's datasheet

The I2C port, also referred to as the Eslov self-identification port within Arduino, comes with: SDA, SCL, GND, +5V, and an extra digital pin meant to send an alarm to the otherwise plain I2C devices connected to it.

The pinout is shown in the following image

If you are interested in designing your own modules for Arduino boards with this expansion port, the connector we suggest using is code: SHR-05V-S-B, also in the picture.
