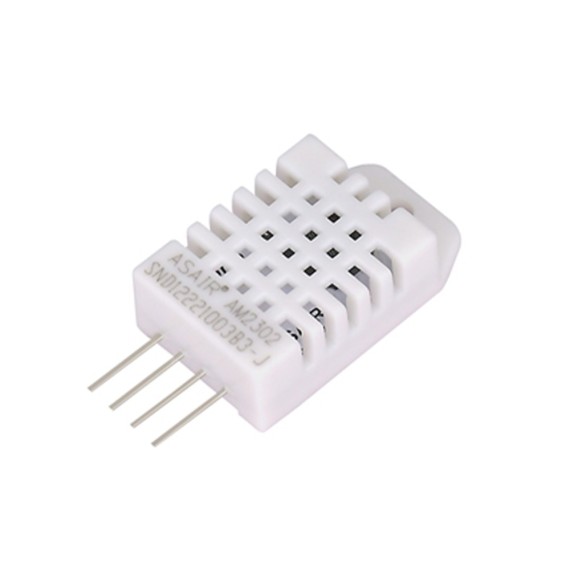

Asair AM2302/DHT22 - Humidity & Temperature Sensor

19-00016638
AM2302
CompanyAOSONG Part NumberAM2302
In Stock
Ships in 24 Hours
690
Our quantity discounts:
Quantity
10+
Price
5.52
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

AM2302 Digital Temperature and Humidity Module has digital signal output. It applies special digital module acquisition technology and temperature and humidity sensing technology, which ensures the product has high reliability and excellent long-term stability. The product has the advantages of excellent quality, ultra-fast response and strong anti-interference ability.

Application Range

HVAC system, dehumidifier, test and inspection equipment, consumer goods, automobiles, automatic control, data recorder, weather station, household appliances, humidity regulation, medical and other related temperature and humidity detection and control.

Product Overview

Each sensor is fully calibrated. Standard one-wire interface makes system integration easy and fast.

Ultra-small size, very low power consumption, Signal transmission distance can reach more than 20 meters, making it the best choice for all kinds of applications.

Product Features

  • Full calibration
  • Digital one-wire output
  • Excellent long-term stability
  • Quick response
  • Strong anti-interference ability
  • Accuracy: ±2%RH、±0.5℃
  • Measuring Range: 0~99.9%RH、-40~80℃
  • Repeatability: ±0.1%RH、±0.1℃
  • Interchangeability: Completely Interchangeable
  • Hysteresis: ±1%RH
  • Drift : <1%RH/yr、±0.3℃/yr
  • Supply Voltage : 3.3~5.5V

Pinout

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
AOSONG
G. Weight
0.006kg
Sensor Type
  • Humidity
  • Temperature
