Seeed Grove - Moisture Sensor

32-00012800
101020008
CompanySeeed Studio Part Number101020008
In Stock
Ships in 24 Hours
390
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

Grove - Soil Moisture Sensor can measure soil moisture for plants. The soil moisture sensor consists of two probes that allow the current to pass through the soil and then obtain resistance values to measure soil moisture content.

This Grove - Soil Moisture Sensor can be used to decide if the plants in a garden need watering. You can also use soil moisture sensors in gardens to automate watering plants. It can be used very easily by just inserting the sensor into the soil and reading the output using ADC. It is ideal for DIY applications and suitable for beginners, as it has detailed startup tutorials, abundant resources, and projects provided in Wiki and Community.

Features
  • Plug-and-play: Grove compatible interface (data transmit) and two large pads function as probes (data collecting).
  • Effective measurement: Based on soil resistivity measurement, high moisture resulting lower resistance and vice versa.

NOTE: This sensor is not hardened against contamination or exposure of the control circuitry to water and may be prone to electrolytic corrosion across the probes, please use it for PROTOTYPING ONLY.

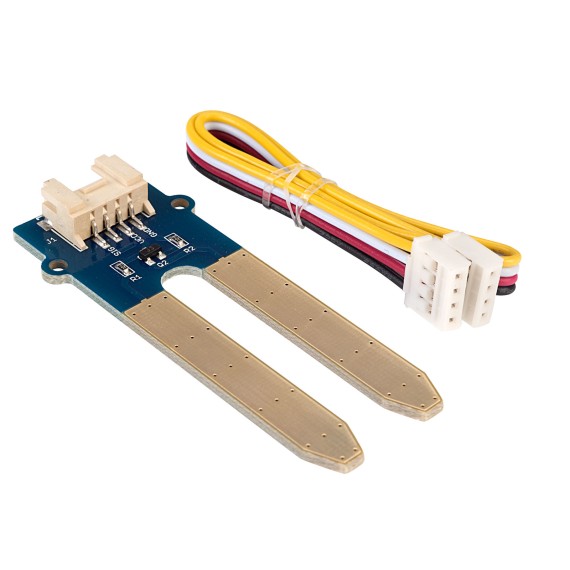

Included in the package

1 x Grove Moisture Sensor
1 x Grove Cable


Technical data
Dimensions60mm x 20mm x 6.35mm
WeightG.W 10g
BatteryExclude
Operating voltage3.3~5V
Operating current35mA
Sensor Output Value in dry soil0~300
Sensor Output Value in humid soil300~700
Sensor Output Value in water700~950
PCB size2.0cm x 6.0cm




Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Seeed Studio
G. Weight
0.001kg
Sensor Type
  • Humidity
Typical Input Voltage
  • 3.3-5VDC
Oparating Current
35mA
Interface
  • Analog
Communication Protocol
  • Without
