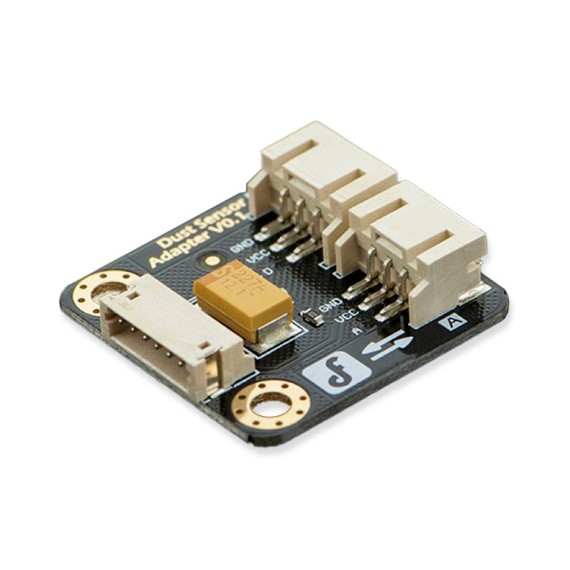

Gravity Dust Sensor Adapter

25-00016941
DFR0280
ΚατασκευαστήςDFRobot Part NumberDFR0280
Διαθέσιμο
Αποστολή σε 24 ώρες
€540
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

Sharp GP2Y1010AU Dust Sensor requires some wiring on the breadboard and a list of components to make it Arduino compatible. This has turned down several people due to the thin wires of the sharp sensor making it yet another addition to the drawer. We've listened your requests and created this adapter so you can get started right away on your project.

If you are planning to assemble several sensors for your air station and need to have it working soon, this adapter will save time on circuit building and debugging. Not only this but it is also fully compatible with our sensor connectors, so you can directly connect it to our expansion boards all together with our large range of sensors.

APPLICATIONS

  • Air monitoring
  • Air filtering
  • Air quality station

Specifications

  • Volatge: 5V
  • Size: 27x27mm（1.064*1.064")
  • Integrated LED for power indicator.

On-board silkscreen:

  • A is for analog pin
  • D is for digital pin

In the Box

  • Dust Sensor Adapter x1
  • Adapter cable x1
  • Digital cable x1
  • Analog cable x1
Κατασκευαστής
DFRobot
Part Number
DFR0280
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.02kg
Τύπος Αισθητήρα
  • Σκόνης
Τυπική Τάση Εισόδου
  • 5VDC
