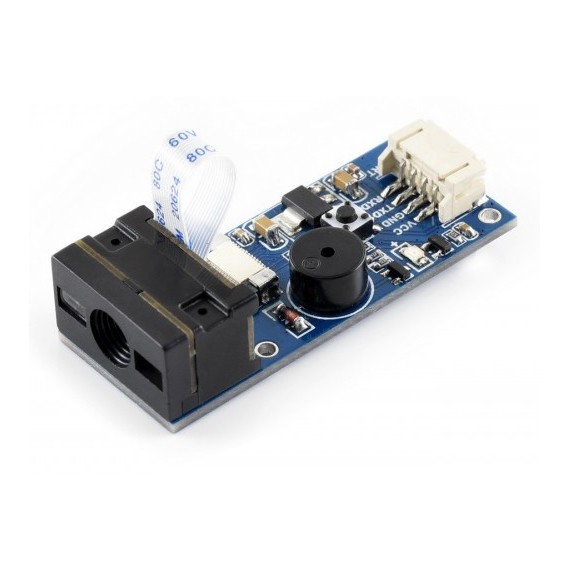

Barcode Scanner Module

This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and...
31-00014810
Volumetric weight: 0.08kgs
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
42.90
Without VAT 34.60
+
WISHLIST COMPARE

DESCRIPTION

This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.

Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.

SPECIFICATIONS

Sensor Type:
  • ID
Typical Input Voltage:
  • 5VDC
Oparating Current:
2mA
Interface:
  • Digital
Communication Protocol:
  • UART
  • USB

EXTRA SPECIFICATIONS

  • Operating voltage: 5V
  • Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep)
  • Operating temperature: 0°C~60°C
  • Operating humidity: 5%~95% (Non-condensing)
  • Communication interface: UART, USB
  • Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)
  • Decodes 2D codes: QR code, Data Matrix, PDF417
  • Light source: white
  • Scan angels: roll 360°, skew ±65°, pitch ±60°
  • Field of view: 28° (horizontal), 21.5° (vertical)

FEATURES

  • Easy to use, requires no knowledges of image recognition
  • Decodes various common 1D/2D codes such as Barcode, QR code etc.
  • Onboard micro USB and UART serial port, allows to connect with computers or embedded devices
  • Configurable via scanning 'configuration code'
  • Onboard light source, works in the dark

Dimensions

  • 53.3x21.4mm
