Battery Level Indicator Module 12V - XD-82B

by OEM
This module is ideally suited to monitoring the status of a 12V battery. Through clever use of a series of resistors and the LM339 comparator, a visual...
19-00019827
Volumetric weight: 0kgs
Company: OEM
Part Number: XD-82B
Made in: China
Out of Stock
Product out of stock
No stock in retail store
2.40
Without VAT 1.94

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

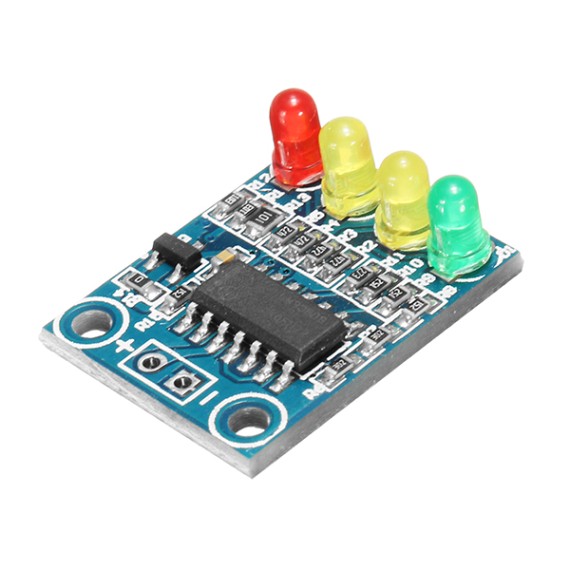

This module is ideally suited to monitoring the status of a 12V battery. Through clever use of a series of resistors and the LM339 comparator, a visual indication of the state of a battery can been seen. As the battery depletes and the voltage begins to fade lights will begin to go off.

This battery level indicator offers four LEDs that light up progressively as the voltage increases:

  • Red: Representing 20%
  • Yellow(1): Representing 50%
  • Yellow(2): Representing 80%
  • Green: Representing 100%

EXTRA SPECIFICATIONS

  • On-Board Precision Voltage detection Chip and Power Regulator Chip
  • Set aside all the way to installation of Battery testing interface and two Positioning Holes
  • Special Function: Common Point Contact Diode
  • Colour: Blue
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 85°C
  • Soldering Points: 2pin
  • Input DC Voltage: 12V
  • Chipset: LM339
  • Pin Pitch: 2.54mm
  • Dimensions: 22x17x8.2mm
  • Mounting: 2 Holes 2.4mm
