Li-ion Battery Balance Module 4S 4.2V 66mA

by OEM
The 4 Series 14.8V 18650 Lithium Battery Equalization Board is suitable for the lithium battery pack with no equalization charge and the charging balance is...
19-00015791
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
2.90
Without VAT 2.34
+
WISHLIST COMPARE

DESCRIPTION

The 4 Series 14.8V 18650 Lithium Battery Equalization Board is suitable for the lithium battery pack with no equalization charge and the charging balance is balanced Make each battery in the battery pack full of electricity at the same time.

The balance sheet has no charge and discharge protection function and can not replace the protective plate; when the battery is charged, the battery filled with electricity is discharged through the resistance so that the battery can be charged Split equalization.

Notes

  • The balance does not charge or discharge the protection function, can not replace the protection plate, when the battery is charged, the first battery fully charged through the resistance discharge.
  • No charge and discharge protection function
  • Have a balanced function

EXTRA SPECIFICATIONS

  • Type: Voltage Regulator
  • Equalization voltage: 4.2V
  • Current equalization: 66mA Product
  • Supply Voltage: 14.8V/16.8V
  • Dissipation Power: 18650 Lithium Battery Balanced Function Board
  • Operating Temperature: Discharge Shunt balanced 4.2V 66mA
  • Application: 14.8V/16.8V 18650 Lithium Battery Balanced Function Board

Dimensions

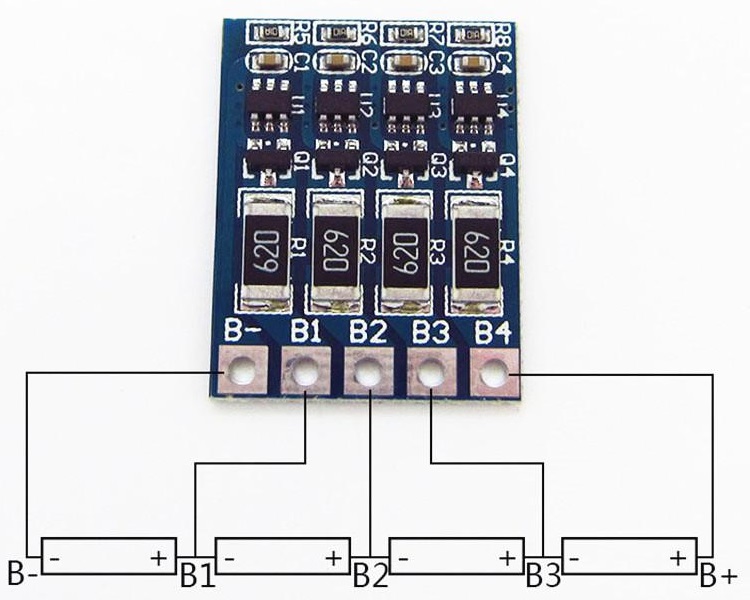

Connection

  • Pin Description:
    • B connected battery anode
    • B1 connect the battery 1 with the contact in battery 2
    • B2 connects the battery 2 with the contacts in the battery 3
    • B3Connect the battery 3 to the contact in the battery 4
    • B4Battery positive
