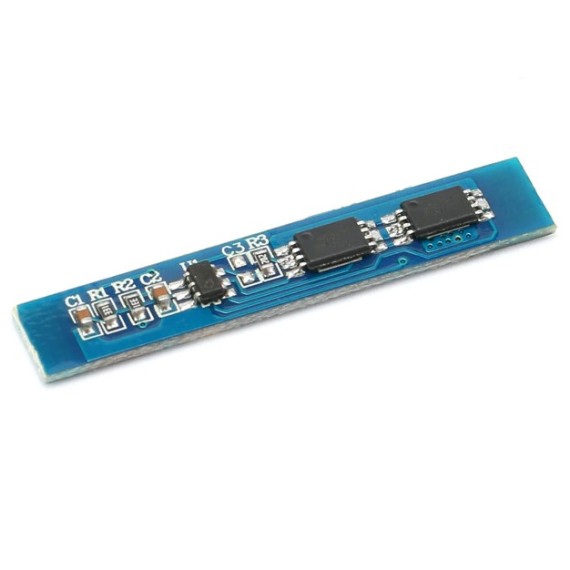

Li-ion Battery Charger Protection Module 2S 3A

by OEM
2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This...
19-00015792
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
1.60
Without VAT 1.29
+
WISHLIST COMPARE

DESCRIPTION

2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This small and smart battery charger protection module comes with the various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.

Notes

  • The protection board cannot be used for lithium iron phosphate batteries, hernia lamps, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, buggy battery, 775 (4A) above the motor, 1W fisheye LED lamp.

EXTRA SPECIFICATIONS

  • Over-Discharge Detection Voltage: 2.3-3.0V±0.05V
  • Maximum Working Current: 3A
  • Transient Current: 5A
  • Operating Temperature: -40-50 C
  • Internal Resistance: Less than 45m Ω
  • B+ B-: The interface of battery core
  • P+ P-: The connector of battery board
  • MB: The connection point between the batteries.

Dimensions

  • 36 x 6 x 1mm

Connection

Pin Descriptions:

  • B+ B-: The interface of battery core
  • P+ P-: The connector of battery board
  • MB: The connection point between the batteries
  • B+: Battery V+ Positive
  • B-: Battery V- Negative
  • P+: Output / Charging V+
  • P-: Output / Charging V-
