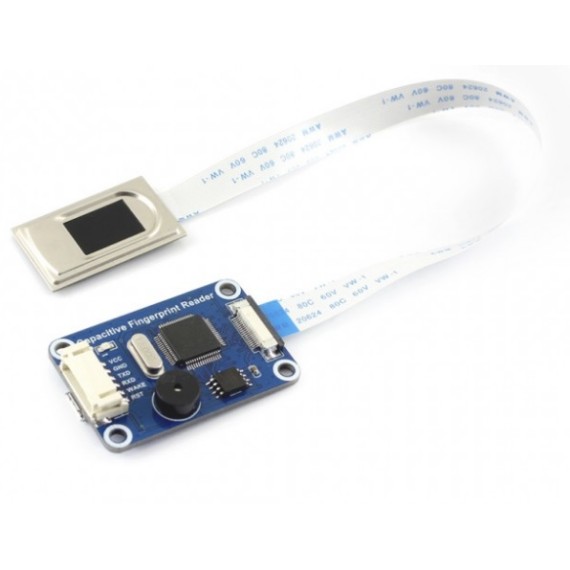

Capacitive Fingerprint Reader

The Capacitive Fingerprint Reader is a standard fingerprinting module designed for secondary development, allows fast and stable fingerprint verification....
31-00013694
Volumetric weight: 0.03kgs
Company: Waveshare
Made in: China
Out of Stock
Product out of stock
No stock in retail store
46.90
Without VAT 37.82

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

The Capacitive Fingerprint Reader is a standard fingerprinting module designed for secondary development, allows fast and stable fingerprint verification.

Based on a high-speed digital processor STM32F105R8, combined with high-security commercial fingerprinting algorithm, and advanced semiconductor sensor, the Capacitive Fingerprint Reader becomes a simple but smart integration module, provides functionalities like fingerprint enrolling, image processing, feature finding, template generating and storing, fingerprint matching and searching, etc.

SPECIFICATIONS

Sensor Type:
  • Biometrics
  • ID
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
40mA
Interface:
  • Digital
Communication Protocol:
  • UART
  • USB

EXTRA SPECIFICATIONS

  • Processor (CPU): STM32F105
  • Sensor: Semiconductor (capacitive)
  • Image: DPI 508
  • Image resolution: 192 x 256
  • Fingerprint capacity: 1000 (expandable)
  • Security level: 0-9 low to high security, 5 by default
  • Matching time: 1s
  • False acceptance rate: 0.0001%
  • False rejection rate: 0.01%
  • Dynamic current: <40mA
  • Operating voltage: 3.3V-5V
  • Communication: UART or USB
  • Anti-electrostatic:
    • aerial discharge: ± 15KV
    • contact discharge: ± 8KV

FEATURES

  • Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure/calculation
  • Commercial fingerprinting algorithm, stable performance, fast verification
  • Sensitive detection, just touch the collecting window lightly, without pressing
  • Allows to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
  • Dual communication, UART or USB
  • Processor will enter sleep and wake up when detecting, achieves low power consumption
  • Comes with rich related resources (software on PC, development SDK, tools, and examples for Raspberry/Arduino/STM32)
  • Applications:
    • Fingerprint lock
    • Fingerprint safe deposit box
    • Access control system
    • Clock in and out

Dimensions

  • Module: 45x30mm
  • Sensor: 33.4x20.4mm
  • Sensing area: 9.6x12.8mm

Contents

  1. Capacitive Fingerprint Reader x1
  2. PH2.0 wire 20cm 6Pin x1
