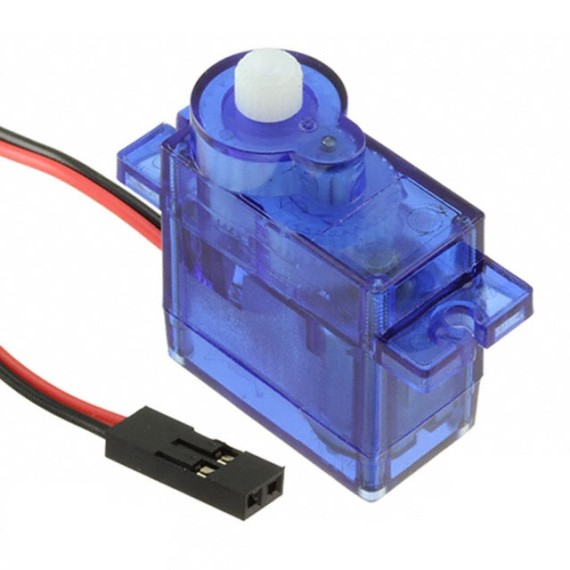

DC Motor in Micro Servo Body

by Feetech
This tiny  DC Motor in Micro Servo Body is an interesting motor - it's the same size and shape as our micro servo but it isn't a servo. It's more like a...
11-00012794
Gross Weight: 0.01kg
Company: Feetech
Made in: China
In Stock
Ships in 24 Hours
Available in store
2.50
Without VAT 2.02
+
WISHLIST COMPARE

DESCRIPTION

This tiny DC Motor in Micro Servo Body is an interesting motor - it's the same size and shape as our micro servo but it isn't a servo. It's more like a DC motor + plastic gear-train in a box. It's not a super powerful motor, it would do well as a little robot wheel. It's also a lot less expensive than a micro servo (continuous or non-continuous) because there is no control board inside. Controlling speed is done by PWM'ing the power leads, controlling direction is done by swapping the power polarity - just like any brushed DC motor.

SPECIFICATIONS

Voltage (Range):
4 - 6Volt
Current (Stall):
650mA
Speed:
130RPM
Torque:
1.5kg.cm
Gearmotor Style:
Micro Servo Body
Gear Material:
Plastic

Notes

  • Runs from 4-6VDC, we've powered it with a Lipoly and 3 alkaline, or 4 NiMH batteries with success.
  • You cannot control this directly from a microcontroller pin! You must have a H-bridge such as a L293D.

EXTRA SPECIFICATIONS

  • Spline Count: 21
  • No load speed:
    • 110RPM (4.8v)
    • 130RPM (6v)
  • Running Current (at no load):
    • 100mA (4.8v)
    • 120mA (6v)
  • Peak Stall Torque (4.8v): 1.3 kg.cm / 18.09 oz.in
  • Peak Stall Torque (6v): 1.5 kg.cm / 20.86 oz.in
  • Stall Current:
    • 550mA (4.8v)
    • 650mA (6v)

Dimensions

  • 32.3mm x 12.3mm x 29.9mm / 1.3" x 0.49" x 1.2"
  • 9 g
