DFRobot Camera Module 12.3MP for Jetson Nano & RPi CM3

25-00016635
SEN0494
CompanyDFRobot Part NumberSEN0494
In Stock
Ships in 24 Hours
€7990 -20%
€6392
DFRobot
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

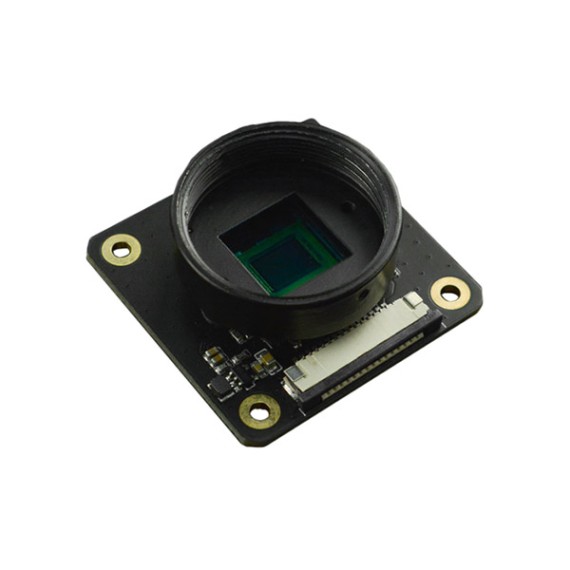

This high-quality 12.3MP camera module adopts Sony's IMX477R chip and requires a C or CS-mount lens to work. It is compatible with NVIDIA Jetson Nano series and Raspberry Pi CM3 compute module. The camera module offers higher resolution (12.3MP) and higher sensitivity (nearly 50% larger area per pixel for improved low-light performance) than IMX219 cameras, which can be used in industrial and consumer applications.

THE PACKAGE INCLUDES

  • IMX477 Camera Module x1
  • C/CS Connection Ring x1
  • FPC Cable x1
  • Dust Cap x1



  • Sensor Model: Sony IMX477R
  • CMOS Diagonal Length: 7.9mm
  • Resolution: 12.3 million pixels (4056×3040)
  • Single Pixel Size: 1.5μm(H)×1.55μm(V)
  • Output Format: RAW12/10/8, COMP8
  • Back Focal Length: Adjustable
  • Lens Standard: C-mount/CS-mount (supporting C/CS connecting ring)
  • Infrared Filter: Integrated
  • Sony IMX477R sensor with 12.3MP high resolution
  • Larger area per pixel for improved low-light performance
  • Back-illuminated sensor architecture for improved sensitivity
  • Support for different C- and CS-mount lenses
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
DFRobot
Gross Weight
0.032kg
Resolution
12.3 MP
Adjustable-focus
Yes
Infrared Night Vision
No
Sensor Type
  • Imaging
