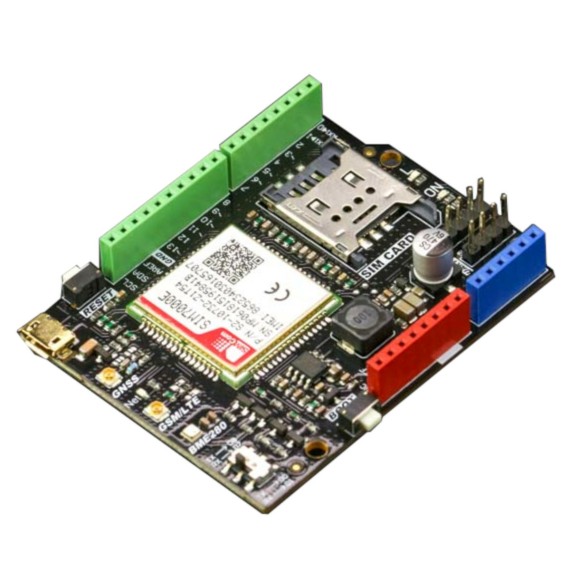

DFRobot SIM7000E NB-IoT/LTE/GNSS/GPRS/GPS Shield for Arduino

από DFROBOT
NB-IoT (Narrow Band-Internet of Things) technology is a new IoT technical branch and supports cellular data network connection of low power consumption...
25-00016358
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0572
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
49.90
Χωρίς ΦΠΑ 40.24
+

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

NB-IoT (Narrow Band-Internet of Things) technology is a new IoT technical branch and supports cellular data network connection of low power consumption device in WAN (Wide Area Network), which is also called LPWAN. NB-IoT operates in an authorized frequency spectrum. It can be directly deployed to GSM, UMTS, and LTE without any interference of current networks, while the bandwidth consumption is just about 180KHz.

The SIM7000 series Arduino NB-IoT/LTE/GPRS expansion shields are wireless communication modules produced by DFRobot and the design is based on SIMCom SIM7000. This wireless communication module is designed for Arduino controllers, supporting multi-frequency LTE-FDD communication, dual-frequency GPRS/EDGE communication, and NB-IoT communication. No matter prototype developments or small-batch productions, the SIM7000 expansion shield is the best solution for applications of low power consumption, low latency, and meddle-throughput. Besides, with onboard GNSS (Global Navigation Satellite System), SIM7000 supports American GPS, Russian GLONASS, European Galileo, Japanese QZSS, and Chinese BeiDou Navigation Satellite System. It can be widely applied to IoT applications such as long-distance control, moving track, long-distance data uploading, and shared bikes.

The SIM7000 NB-IoT/LTE/GPRS expansion shield supports both SIM card and NB-IoT card synchronously.

Version Description: The onboard BEM280 sensor is removed from the SIM7000 series expansion shield V2.0 and later.

ΣΗΜΕΙΩΣΕΙΣ

  • SIM7000E is commonly used with frequency bands in Europe.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τυπος Shield:
  • GPRS/GSM
  • GPS
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0572
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Input Voltage: VIN 7~12VDC(20Vmax)
  • Model: SIM7000E
  • Dimension: 53.4x68.6mm
  • Weight: 46g
