DFRobot URM04 Ultrasonic Distance Sensor – RS485, 4-500cm

Κωδικός:

25-00010222

Part Number: SEN0002

ΚατασκευαστήςDFRobot Part NumberSEN0002

Εξαντλημένο

€14⁹⁰

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

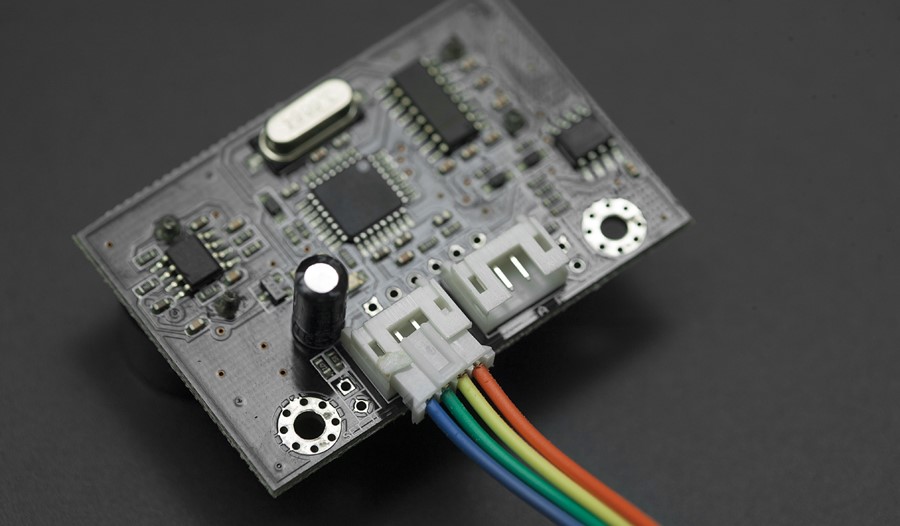

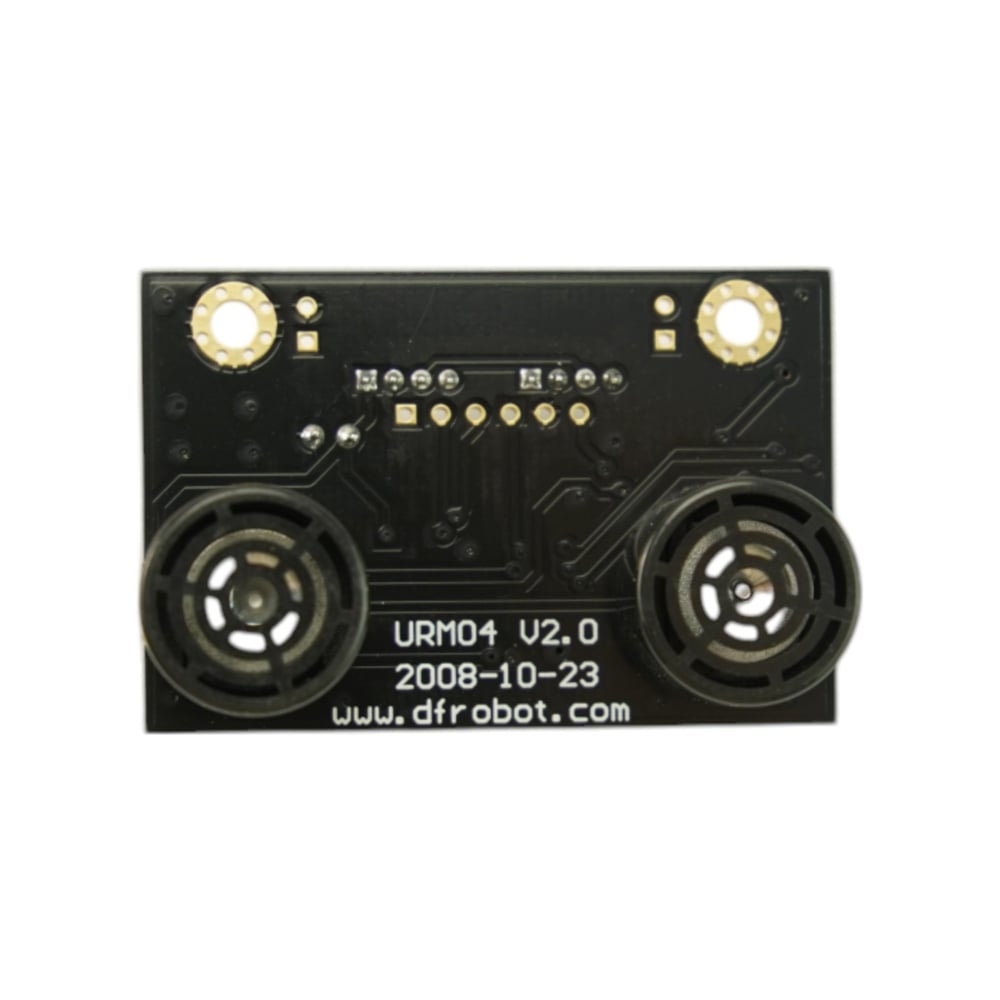

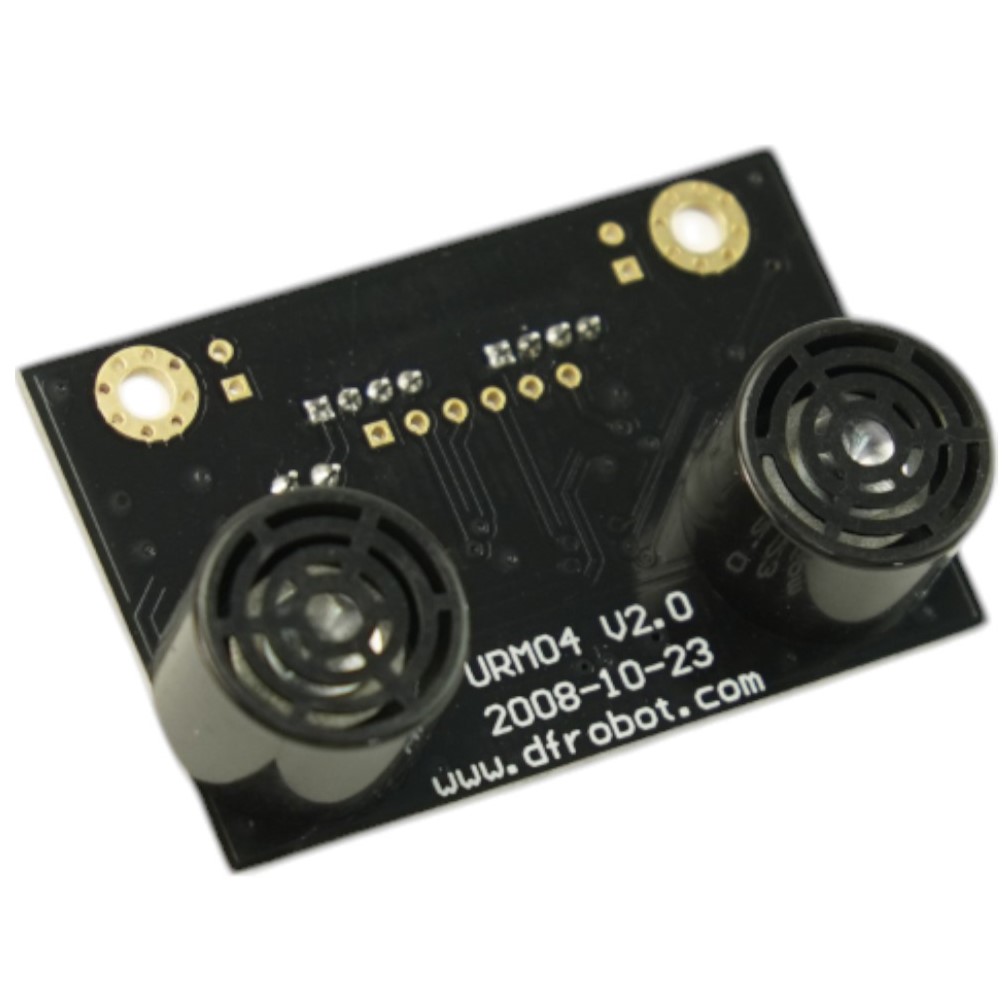

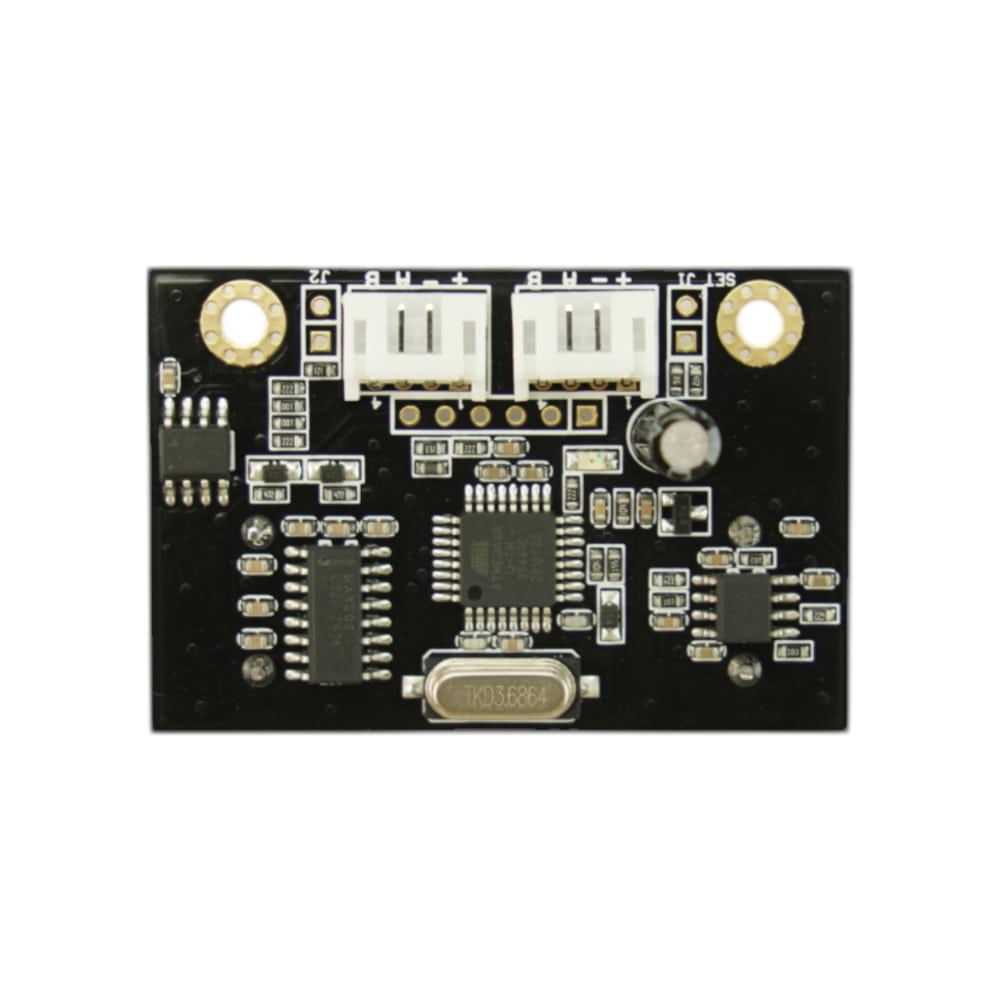

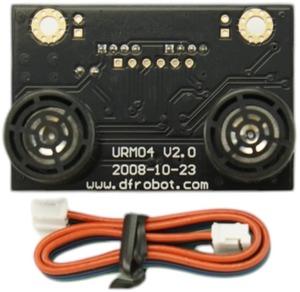

The URM04 Ultrasonic sensor is developed based on our popular URM37 ultrasonic sensor, it is using RS485 interface which allows multiple sensors to be used simultaneously. The RS485 interface allows a number of sensors to work together. Up to 32 URM04 may be connected together in a network.

The ultrasonic sensor allows you to determine the exact distance of an obstacle in the sonar field of view. The cleverness of your robot will depend on a sensitive sensor similar to the one bats use to know their position and track prey. With advanced programming, you can design compensators in order to perfectly control your motors according to the obstacle's distance.

Note: This sensor requires an RS485 interface. It cannot be connected directly to an Arduino. To make the connection easier we recommend using DFRobot Arduino RS485 Shield.

What is the URM series?

The URM series is a range of ultrasonic distance measurement modules specifically designed for industrial control and robot control applications. These modules are equipped with internal temperature compensation functionality, allowing for accurate measurement of the distance between the sensor and the target object. They can be widely used in various scenarios, such as robot barrier navigation, liquid level detection, and obstacle avoidance designs.

Since the introduction of the first URM module in 2009, DFRobot has continuously released many models of the URM series of ultrasonic distance measurement modules. These modules cover a wide range of measurement distances, beam angles, accuracy levels, and interface options, catering to the requirements of different application scenarios.
