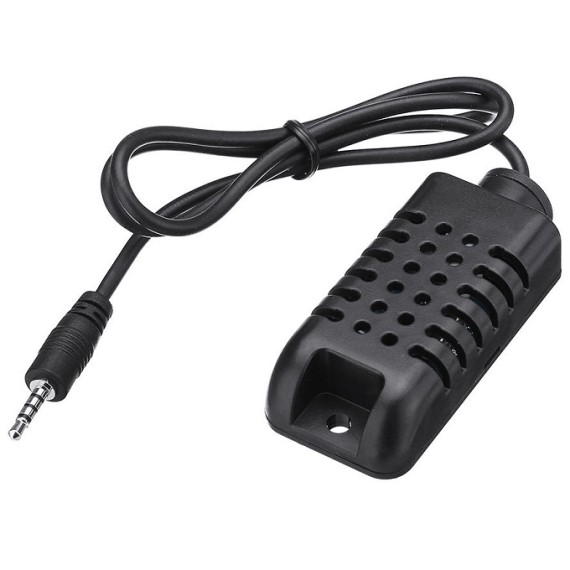

Digital Temperature & Humidity Sensor with Jack 2.5mm (AM2301)

by OEM
This temperature & Humidity sensor is a wired version of the DHT21, in a large plastic body. It is a basic, low-cost digital temperature and humidity...
07-00059103
Gross Weight: 0kg
Company: OEM
Part Number: IM160712004
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
8.90
Without VAT 7.18
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 7.12 6.23 5.34
WISHLIST COMPARE

DESCRIPTION

This temperature & Humidity sensor is a wired version of the DHT21, in a large plastic body. It is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed). Its fairly simple to use, but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using our library, sensor readings can be up to 2 seconds old.

This sensor should work with the Sonoff TH 10A/16A Temperature And Humidity Monitoring WiFi Smart Switch.

SPECIFICATIONS

Sensor Type:
  • Humidity
  • Temperature
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
1.5mA
Interface:
  • Digital
Communication Protocol:
  • Dallas 1-Wire

SPECIFICATIONS

  • 3.5-5.5V Input
  • 1-1.5mA measuring current
  • Humidity from 0-100% RH
  • -40 - 80 degrees C temperature range
  • +-3% RH accuracy
  • +-0.5 degrees C

FEATURES

Διαστάσεις

  • 59 x 27 x 13mm
  • Wire length: 45cm
