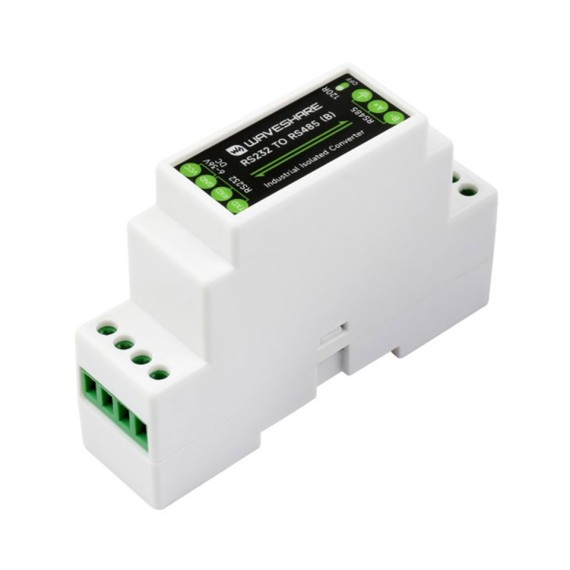

DIN-Rail RS232 to RS485 Converter - Anti-Surge & Lightning Proof

από WAVESHARE
  Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal Stable transmission at the...
31-00023376
Ογκομετρικό βάρος: 0.1kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: RS232 TO RS485 (B)
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.40
Χωρίς ΦΠΑ 10.00
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 11.16

ΠΕΡΙΓΡΑΦΗ



  • Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal
  • Stable transmission at the rate of 300~115200bps
  • Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance
  • Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch
  • The onboard power supply screw terminal, allows 6V~36V DC wide range input
  • Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective





ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
RS232 TO RS485 (B)
Πρωτόκολλο:
  • RS232
  • RS485
Μικτό Βάρος:
0.1kg
Χώρα Προέλευσης:
Κίνα
