Din Power Supply 24V 0.63A MeanWell - HDR-15-24

48-00015157
Gross Weight: 0.08kg
Company: MeanWell
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
14.80
Without VAT 11.94
+
WISHLIST COMPARE

SPECIFICATIONS

Power:
15.2Watt
Output Voltage:
24V DC
Output Current:
0.63Amp
Supply Voltage:
  • 120...370V DC
  • 85...264V AC
Protection:
  • overload
  • short-circuit
  • voltage growth
Number of Outputs:
1
Mounting:
DIN
Efficiency:
86%
Power Supply Dimensions:
17.5 x 90 x 54mm
Output connector:
  • Screw Terminals

SPECIFICATIONS

  • Type of power supply unit: Switched-mode
  • Power: 15.2W
  • Output voltage: 24V DC, 21.6...29V DC
  • Output current: 0.63A
  • Supply voltage: 85...264V AC, 120...370V DC
  • Electrical connection: Terminal block
  • Mounting: DIN
  • umber of outputs: 1
  • Operating temperature: -30...70°C
  • Protection: Overload, voltage growth, short-circuit
  • Efficiency: 86%
  • Series: HDR-15

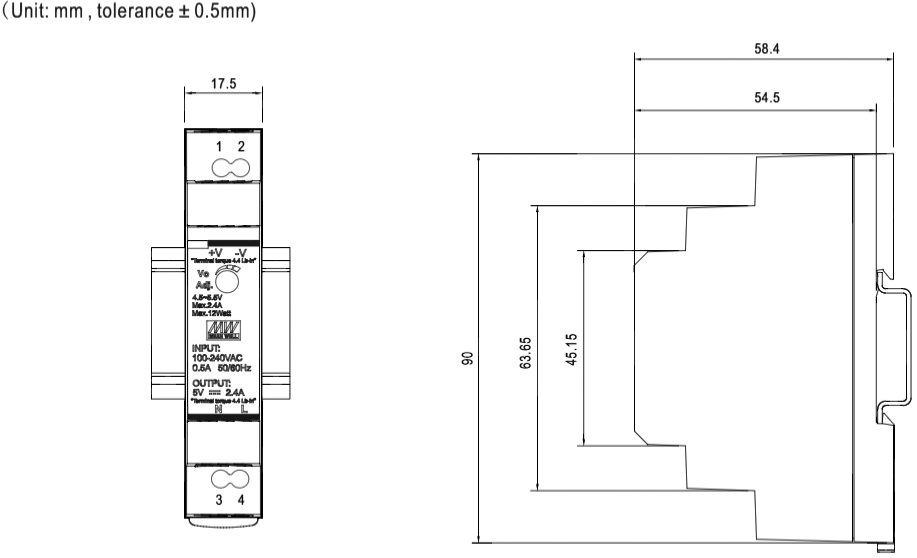

Διαστάσεις

  • Body: 17.5 x 90 x 54mm
  • Weight: 78g
