Din Power Supply 24V 1.5A MeanWell - HDR-30-24

48-00015158
Gross Weight: 0kg
Company: MeanWell
Made in: China
Out of Stock
Product out of stock
No stock in retail store
18.60
Without VAT 15.00

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Power:
36Watt
Output Voltage:
24V DC
Output Current:
1.5Amp
Supply Voltage:
  • 120...370V DC
  • 85...264V AC
Protection:
  • overload
  • short-circuit
  • voltage growth
Number of Outputs:
1
Mounting:
DIN
Efficiency:
89%

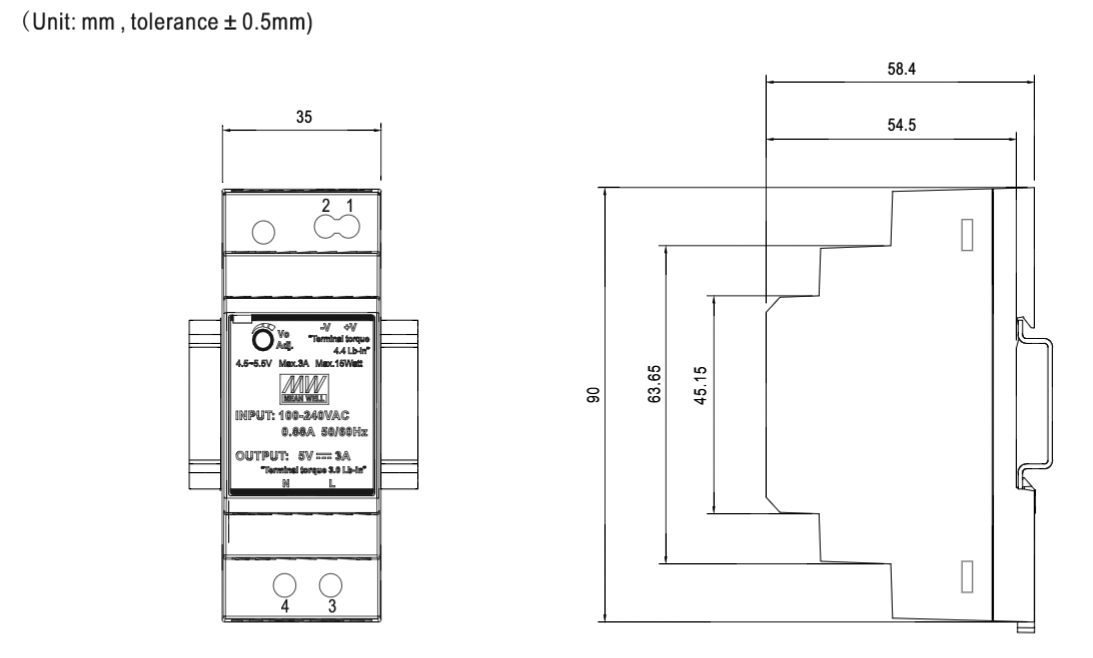

Power Supply Dimensions:
35 x 90 x 54.5mm
Output connector:
  • Screw Terminals

SPECIFICATIONS

  • Type of power supply unit: Switched-mode
  • Power: 36W
  • Output voltage: 24V DC, 21.6...29V DC
  • Output current: 1.5A
  • Supply voltage: 85...264V AC, 120...370V DC
  • Electrical connection: Terminal block
  • Mounting: DIN
  • umber of outputs: 1
  • Operating temperature: -30...70°C
  • Protection: Overload, voltage growth, short-circuit
  • Efficiency: 89%
  • Series: HDR-30

Διαστάσεις

  • Body: 35 x 90 x 54.5mm
  • Weight: 120g
