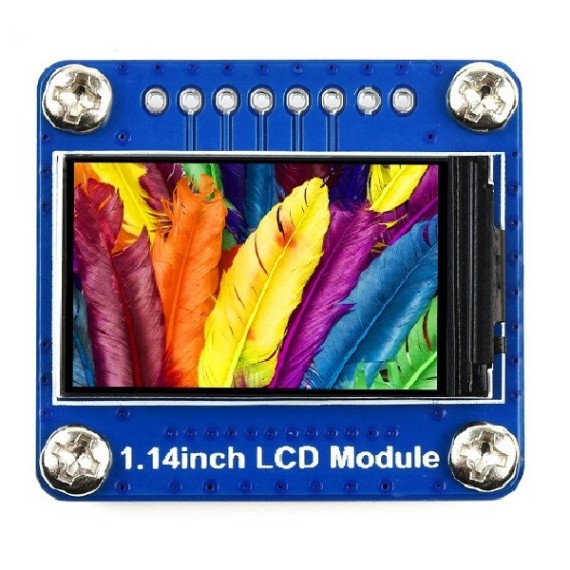

1.14inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×135 Resolution, SPI Interface
Embedded ST7789 Driver, Using SPI Bus
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features At A Glance
- 240x135 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ
- 1.14inch LCD Module x1
- PH2.0 8PIN 20cm cable x1
1
2
2
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
- Oparating Voltage: 3.3V/5V
- Communication Interface: 4-wire SPI
- Display Panel: IPS
- Driver: ST7789
- Resolution: 240x135 pixels
- Display Size: 24.91x14.86mm
- Pixel Size: 0.1101x0.1035mm
- Dimensions: 35.00x32.00mm
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32
| VCC | Power (3.3V/5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
