Raspberry Pi Touch Display 2

Κωδικός:

06-00012140

ΚατασκευαστήςRaspberry Pi

Διαθέσιμο

Αποστολή σε 24 ώρες

€79⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

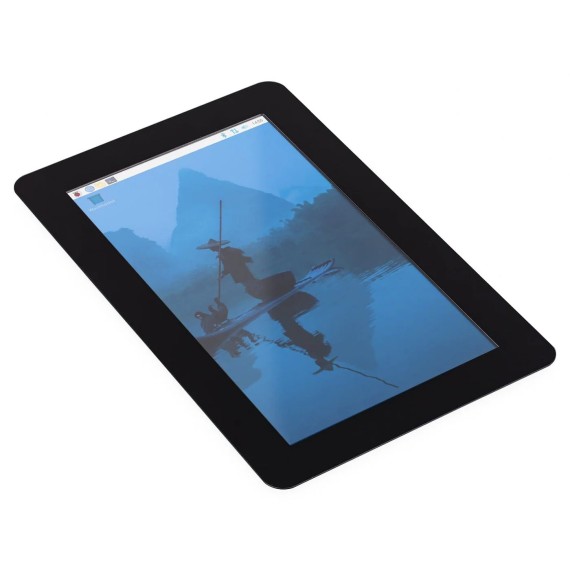

Raspberry Pi Touch Display 2 is a 7′′ touchscreen display for Raspberry Pi with a 720×1280 resolution, ideal for interactive projects such as entertainment systems, home automation and information dashboards - or simply used as a compact monitor for your Raspberry Pi OS desktop!

Raspberry Pi OS provides touchscreen drivers with support for five-finger capacitive touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers (except for the Raspberry Pi Zero and Pi 400 line). The Raspberry Pi provides power to the display - no separate power supply is required.

Features

Touchscreen display for Raspberry Pi
Compatible with all Raspberry Pi boards with a DSI connector
Portrait 720x1280 resolution (can be changed to landscape in software)
Five-finger true multi-touch
Capacitive touch
Anti-glare surface treatment
Powered directly by the host Raspberry Pi, no separate power supply required
Rear mounting points for Raspberry Pi boards (fixings included)
Not compatible with enclosures designed for the original/older Raspberry Pi touch display

Technical data

Size: 189.32mm x 120.24mm
Display size (diagonal): 7"
Display format 720 (RGB) x 1280 pixels
Active area: 88mm x 155mm
LCD type: TFT, normally white, transmissive
Colour configuration: RGB-stripe
Backlight type: LED B/L

Resources

Package contents

Raspberry Pi Touch Display 2 ×1
22-way to 15-way FFC DSI ribbon cable (for use with Raspberry Pi 5) ×1
15-way to 15-way FFC DSI ribbon cable (for use with Raspberry Pi 4B/3B+/3/3A+/2/B+) ×1
GPIO connection cable ×1
M2.5 Fixing screws ×8
