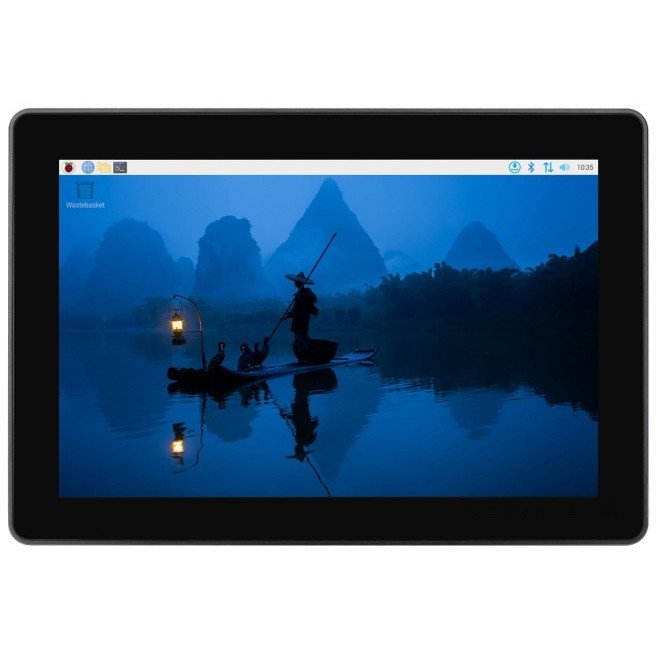

Waveshare Industrial HMI 8" 1280×800 for Raspberry Pi

31-00029988
RPI-HMI-080D-ACCE (EU)
ΚατασκευαστήςWaveshare Part NumberRPI-HMI-080D-ACCE (EU)
Κατόπιν παραγγελίας
Διαθέσιμο σε 45-60 ημέρες
€15990
Waveshare
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
  • Προβολη ολων των παραλλαγών ως λίστα

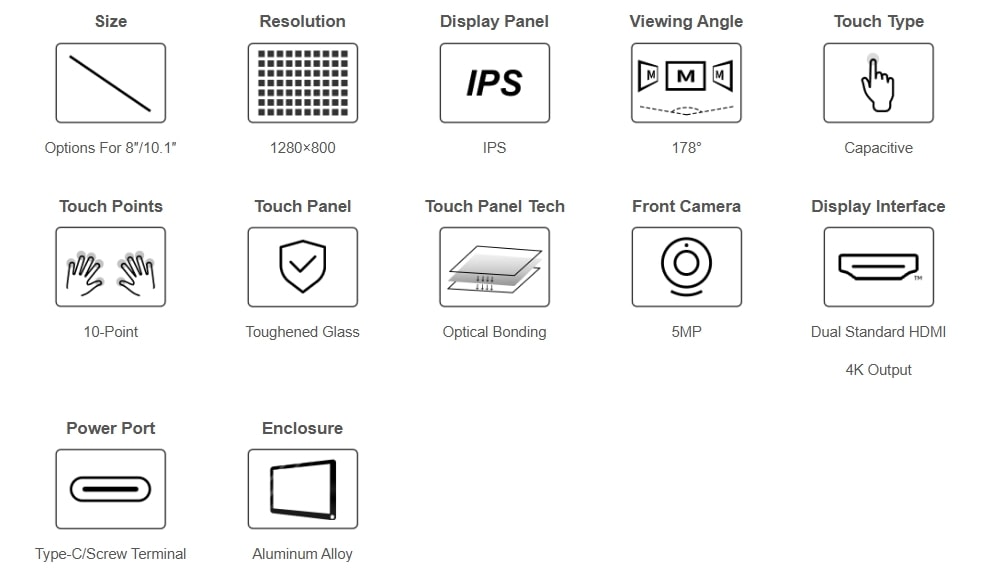

Features
  • Options available: 8 & 10.1 inches
  • Industrial Human Machine Interface (HMI) display
  • DSI touch screen, 10-point capacitive touch control
  • IPS display panel with hardware resolution of 1280×800
  • Using optical bonding process to ensure clearer pictures and reduce light reflection
  • Toughened glass capacitive touch panel, hardness up to 6H
  • Dual 4Kp60 HDMI display output
  • Integrated 5-megapixel front camera, for accurate face recognition ensuring safety every moment
  • Supports Raspberry Pi 5/4 all-in-one installation
  • Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate
  • Supports Bookworm system without driver when used with Raspberry Pi
  • Supports software control of backlight brightness

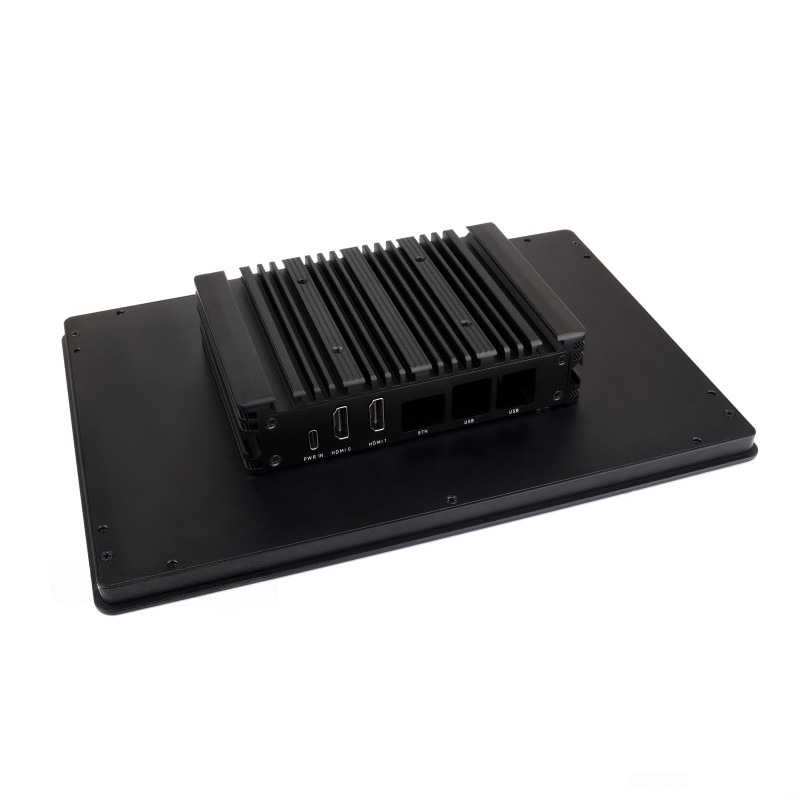

  • Aluminum alloy case with passive cooling design, efficient heat dissipation, no fan noise worries
  • Embedded installation, compatible with VESA standard bracket installation
Technical data
  • Refresh rate: 60Hz
  • Viewing angle: 178°
  • Max brightness: 300cd/㎡
  • Color gamut: 50% NTSC
  • Backlight adjustment: Software dimming

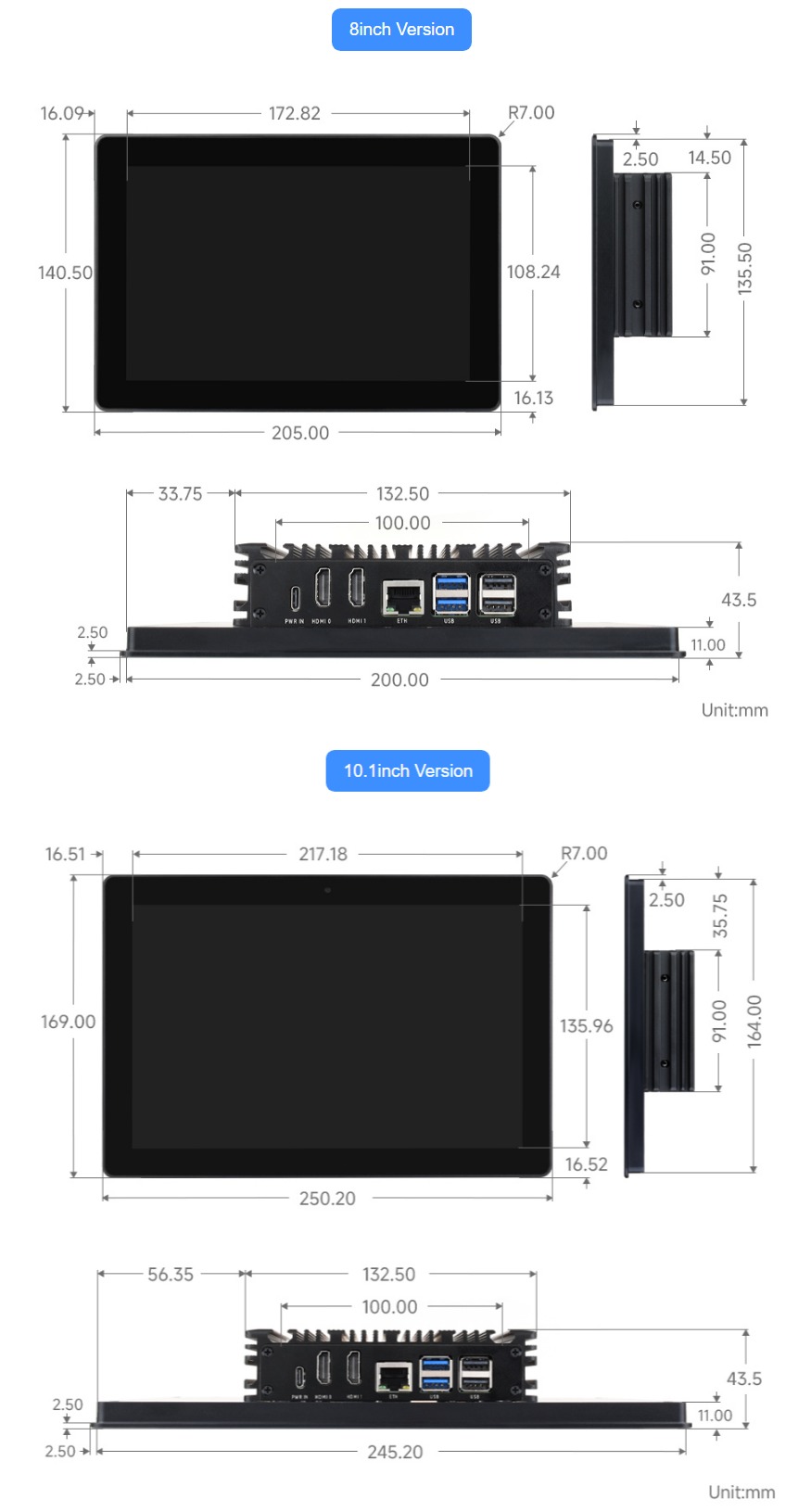

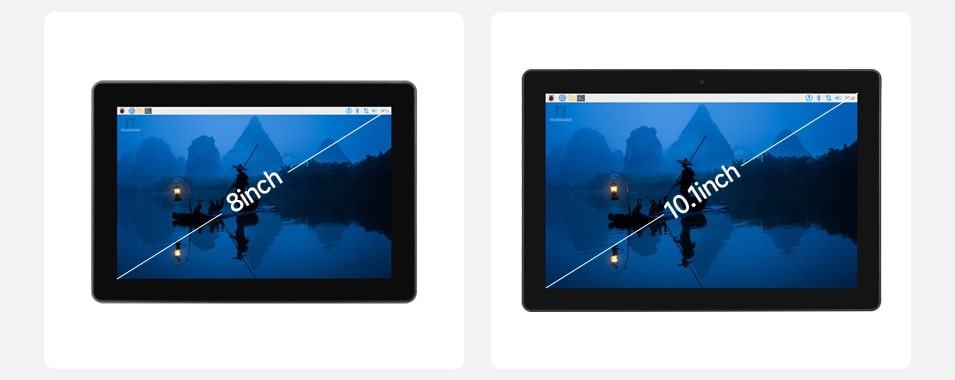

Size options

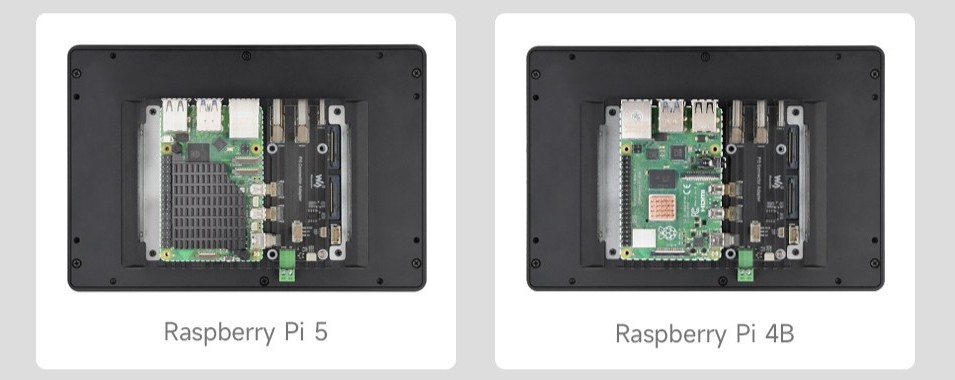

Interfacing with Raspberry Pi 4/5 (not included)


5MP front camera


Two power supply methods


Supports touch screen customization

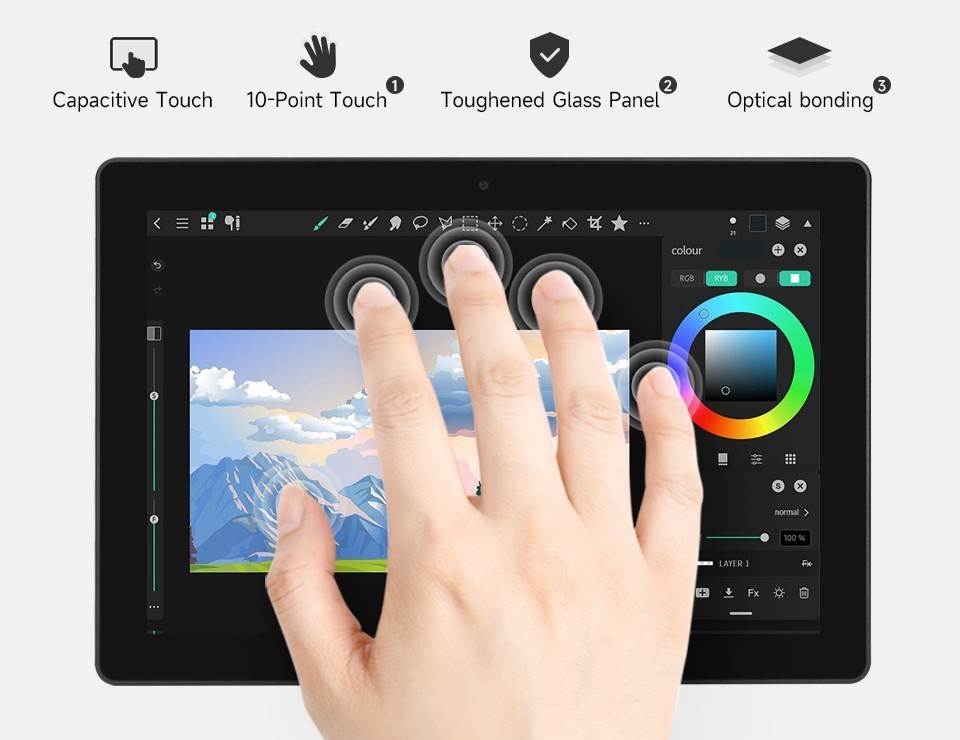

10-Point capacitive touch


Excellent heat dissipation


VESA mounting support


Adjustable brightness via software


Αssembly instructions with Raspberry Pi 5 (not included)

1. First, unscrew the four screws on metal back cover and remove the cover.


2. Respectively install the thermal tapes and heatsink on the front and back panels of Raspberry Pi 5, and insert the matching 64GB system card.


3. Connect the Raspberry Pi 5 motherboard to the HAT, make sure the mounting holes of the Raspberry Pi are aligned with the four screw holes on the back of the screen, and fix them with M2.5*4mm silver metal screws.


4. Use CSI cable to connect CSI interface to CAM/DIPS 1 interface of Raspberry Pi; Use DSI cable to connect DSI interface to CAM/DIPS 0 interface of Raspberry Pi.


5. Install the metal front panel, fix the silicon key inside the case, and fix them with KM2.5*5mm black metal screws. (Pi 4 and Pi 5 front cover hole positions are inconsistent, please distinguish them.)


6. Use M2.5x5mm black metal screws to fix the side cover.


7. Finally, install the green terminal on the rear cover and complete the hardware assembly.


Hardware layout
  1. 5V Type-C power port
  2. Standard HDMI Interface x 2
  3. USB3.0 port x 2
  4. USB2.0 port x 2
  5. Gigabit Ethernet connector
  6. TF card slot
  7. Power button
  8. Power indicator
  9. 5V Power supply screw terminal (3.81mm pitch)
  10. Debugging serial port

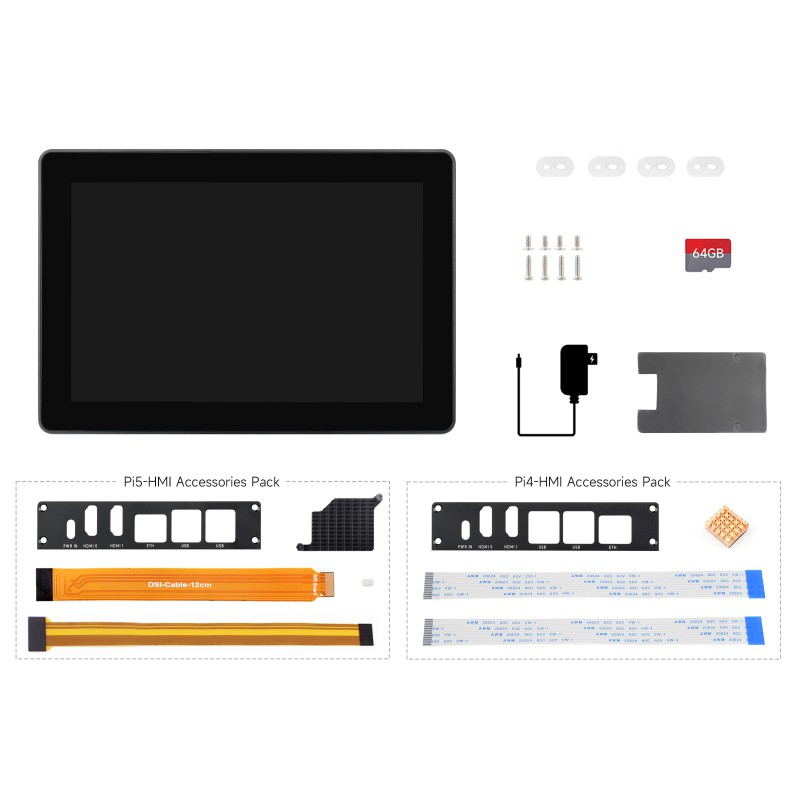

Package contents
  1. Touch display ×1
  2. Mounting buckle (4PCS) ×1
  3. Screws pack ×1
  4. TF card 64GB ×1
  5. 27W power supply ×1
  6. 5W thermal pad 16×16×1mm ×1
  7. Pi5-HMI Accessories Pack:
    1. Pi5 side panel ×1
    2. Aluminum alloy heatsink ×1
    3. DSI-Cable-12cm ×1
    4. Silicon button ×1
    5. Camera cable -15cm ×1
  8. Pi4-HMI Accessories Pack:
    1. Pi4 side panel ×1
    2. Copper heatsink ×1
    3. DSI-Cable-12cm ×1
    4. FFC 15PIN 1.0 pitch ~160mm ×2

Κατασκευαστής
Waveshare
Part Number
RPI-HMI-080D-ACCE (EU)
Σύνδεση
  • DSI
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
1.755kg
Εύρος Χρωμάτων
NTSC 50%
Μέγεθος Οθόνης
8 "
Ανάλυση
1280×800
Αναλογία Οθόνης
  • 8:5
Οθόνη Aφής
Capacitive
Διασύνδεση
  • DSI
