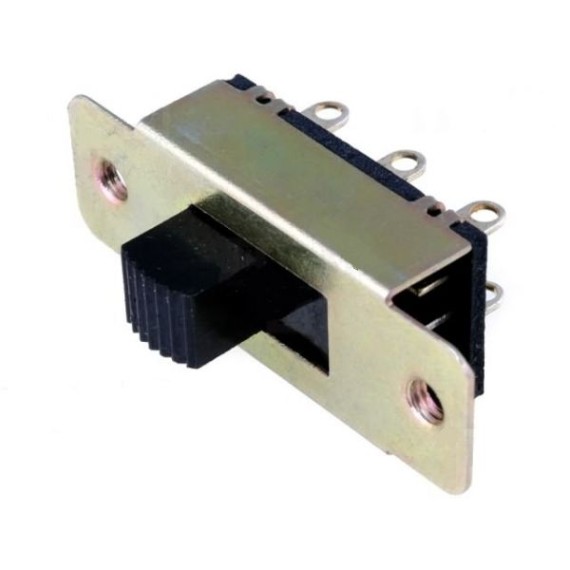

Slide Switch DPDT On-Off-On (3A/250VAC)

by OEM
04-00015103
Gross Weight: 0kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.55
Without VAT 0.44
+
WISHLIST COMPARE

SPECIFICATIONS

Contacts configuration :
  • DPDT
Switching method :
ON-OFF-ON
DC or AC Rating:
3A / 250VAC
Leads for:
Soldering

SPECIFICATIONS

  • Stable positions number 3-position
  • Contacts configuration DPDT
  • DC contacts rating (at resistance load) 3A / 250 VAC
  • Switching method ON-OFF-ON
  • Number of terminals 6
  • Body dimensions 35 x 13 x 21.7mm
  • Leads for soldering
  • Mounting screw type
  • Knob height 8.6mm
  • Number of positions 3
  • Mounting holes pitch 28mm
