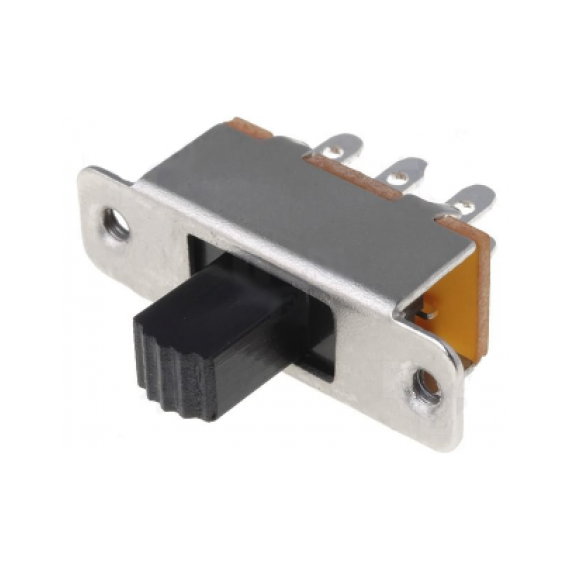

Slide Switch DPDT On-On

by Ninigi
Specifications : Switch type slide Stable positions number 2-position Contacts configuration DPDT AC contacts rating (at resistance load)...
05-00015104
Gross Weight: 0kg
Company: Ninigi
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.80
Without VAT 0.65
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.64 0.56 0.4800
WISHLIST COMPARE

DESCRIPTION

Specifications:

  • Switch type slide
  • Stable positions number 2-position
  • Contacts configuration DPDT
  • AC contacts rating (at resistance load) 0.5 A / 250 VAC
  • Switching method ON-ON
  • Number of terminals 6
  • Leads for soldering
  • Body dimensions 16 x 7.5 x 7.5mm
  • Mounting screw type
  • Operating temperature -20...60°C
  • Knob height 6.5mm
  • Number of positions 2

Documents:

SPECIFICATIONS

Contacts configuration :
  • DPDT
Switching method :
ON-ON
DC or AC Rating:
0.5A / 250VAC
Leads for:
Soldering
