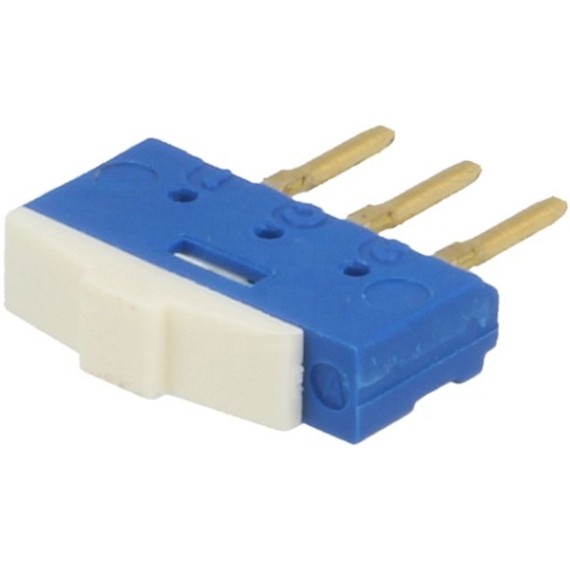

Slide Switch SPDT On-On

by ECE
05-00010110
Company: ECE
Made in: China
Out of Stock
Product out of stock
No stock in retail store
0.75
Without VAT 0.60

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Contacts configuration :
SPDT
Switching method :
ON-ON
DC or AC Rating:
0.5A / 12VDC
Leads for:
PCB

EXTRA SPECIFICATIONS

  • Type of switch: Slide
  • Number of all positions: 2
  • Stable positions number: 2-position
  • Contacts configuration: SPDT
  • DC contacts rating @R(at resistance load): 0.5 A / 12 VDC
  • Switching method (item in brackets is instantaneous): ON-ON
  • Number of terminals: 3
  • Leads for: PCB, straight
  • Mounting: THT
  • Knob height: 2mm
  • Operating temperature: -40...85°C
  • Min. insulation resistance: 10000MΩ
  • Max. contact resistance: 30mΩ
  • Flammability rating: UL94V-0

Dimensions

  • 10 x 2.5 x 6.5mm
  • Terminal pitch: 2.54mm
