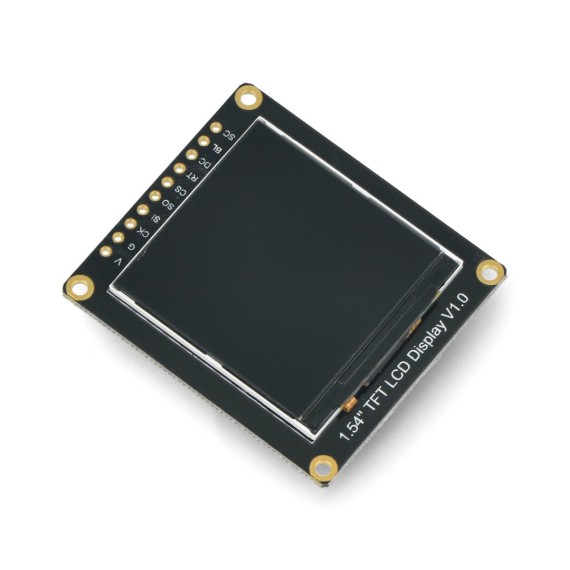

Fermion 1.54" 240x240 IPS TFT LCD Display with MicroSD Card

από DFROBOT
This display module features high resolution, low power consumption, wide-angle and easy wiring. With a small size of 1.54”, it offers 240x240 resolution....
25-00016317
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0649
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+

ΠΕΡΙΓΡΑΦΗ

This display module features high resolution, low power consumption, wide-angle and easy wiring. With a small size of 1.54”, it offers 240x240 resolution. The module employs the IPS screen, which performs excellently in the view angle (80/80/80/80). It supports SPI(4-wire) communication mode and GDI port (work with main-controllers with GDI port), plug, and play. This product can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc.

The 1.54” LCD module can be powered by 3.3V~5V, and the maximum power consumption is about 24Ma. It is compatible with multiple main-controllers like UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, etc. When working with M0, the GDI interface should be used, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures.

ΣΗΜΕΙΩΣΕΙΣ

  • The product doesn’t contain a MicroSD Card. You can click here to buy one.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0649
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
LCD/TFT
Μέγεθος Οθόνης:
1.54"
Ανάλυση:
240x240
Αναλογία Οθόνης:
  • 4:3
Χρώματα Οθόνης:
Colorful
Οθόνη Aφής:
Capacitive
Διασύνδεση:
  • SPI

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 3.3V~5V
  • IPS Angle of View: 80/80/80/80
  • Color Depth: 16-bit (RGB565)
  • Pixels: 240 × 240
  • Connection Port: SPI
  • Driver Chip: ST7789
  • Brightness: 250 (Typ) cd/m2
  • Full-screen Power Consumption: about 17mA(3.3V) 17mA(5V)(Typ)
  • Operating Temperature: -30℃~+70℃
  • Display Area: 27.72x27.72 mm
  • Mount Hole Diameter: 2mm
  • Weight: 19g

ΔΥΝΑΤΟΤΗΤΕΣ

  • Wide Angle of View
  • High Resolution
  • GDI Interface: plug and play
  • Onboard MicroSD card slot

Applications

  • Wearable devices
  • MP3/MP4
  • Weather Display
