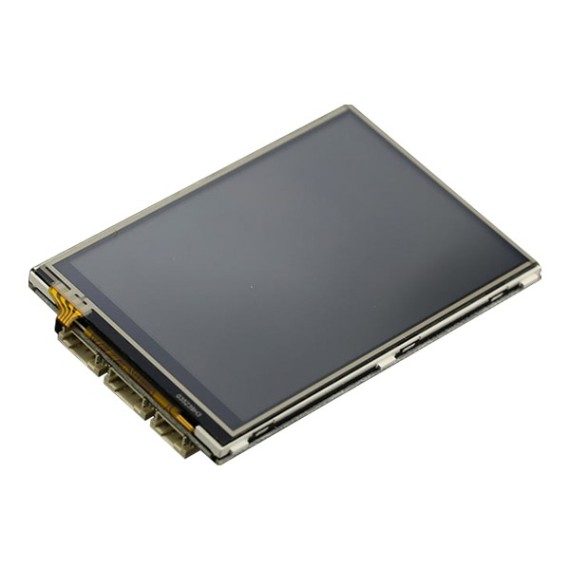

Fermion 3.5” 480x320 TFT LCD Capacitive Touchscreen with MicroSD Card Slot

από DFROBOT
With 480x320 color pixels, this 3.5” LCD display module adopts ILI9488 driver chip and integrates GT911 touch chip that supports 5 capacitive touch-points...
25-00016322
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0669
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
49.90
Χωρίς ΦΠΑ 40.24
+

ΠΕΡΙΓΡΑΦΗ

With 480x320 color pixels, this 3.5” LCD display module adopts ILI9488 driver chip and integrates GT911 touch chip that supports 5 capacitive touch-points at most. This display supports for SPI (4-wire) communication mode and performs excellently in the angle of view (60/60/60/60). In addition, the module provides compatibility with GDI (work with main-controllers with GDI), plug and play. Furthermore, it features high resolution, wide viewing angle, and simple wiring, which can be used in all sorts of display applications, such as, IoT controlling device, game console, desktop event notifier, touch interface, etc.

The 3.5” LCD module can be powered at 3.3~5V and is compatible with multiple main-controllers: UNO, Leonardo, ESP32, ESP8266, FireBeetle M0. Use the GDI interface to work with M0, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures.



ΣΗΜΕΙΩΣΕΙΣ

  • The product doesn’t contain a MicroSD Card. You can click here to buy one.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0669
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
LCD/TFT
Μέγεθος Οθόνης:
3.5"
Ανάλυση:
480x320
Αναλογία Οθόνης:
  • 16:10
Χρώματα Οθόνης:
Colorful
Οθόνη Aφής:
Capacitive
Διασύνδεση:
  • SPI

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 3.3V-5.5 V
  • Color Depth: 16-bit(RGB565)
  • Driver Chip: ILI9488
  • Touch Chip: GT911
  • Pixels: 480x320
  • Communication Mode: SPI
  • Brightness (cd/m2): 300(TYP)
  • Full-screen Consumption: 48.1mA*5V/3.3V(Typ)
  • Operating Temperature: -20℃~+70℃
  • Display Area: 73.44×48.96mm
  • Module Size: 55.50x95.00mm
  • Mounting Hole Diameter: 2mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Wide-angle of view
  • Multiple capacitive touch points
  • High resolution
  • GDI, plug, and play
  • Onboard MicroSD card slot

Applications

  • IoT controlling End
  • Game console
  • Desktop event notifier
