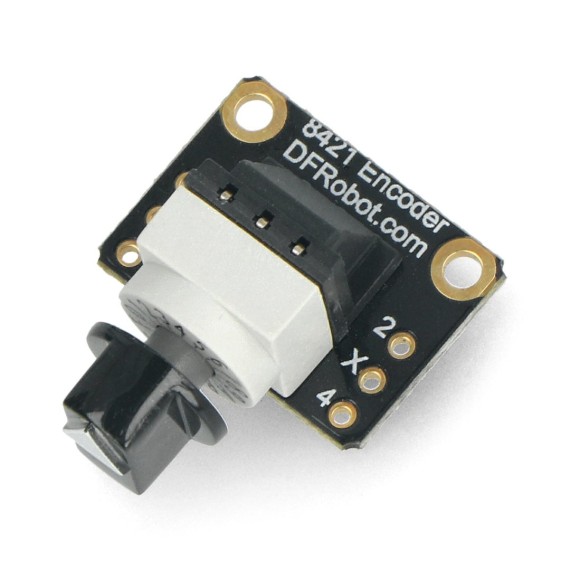

Fermion 8421 Encoder-Horizontal

από DFROBOT
This is an 8421 absolute position encoder with 16-gear code(0-F). The mechanical position determines the uniqueness of each position of the encoder....
25-00016320
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0722
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
4.80
Χωρίς ΦΠΑ 3.87
+

ΠΕΡΙΓΡΑΦΗ

This is an 8421 absolute position encoder with 16-gear code(0-F). The mechanical position determines the uniqueness of each position of the encoder. Compared to a potentiometer, it doesn’t require memory, reference point, and constant counting. Whenever you need the position, you can just easily read it.

In this case, the anti-interference of the encoder and the reliability of the data are greatly improved. And because of the absolute uniqueness of each position, the anti-interference ability, and no power-off memory function required, this product is widely used in many kinds of industrial systems for device status controlling.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0722
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Current: 150mA, 42V
  • 8421 Encode: 16-gear(0-F)
  • Service Life: 10000 steps
  • Operating Temperature: -40~85℃
  • Dimension: 14x19mm
  • Mounting Aperture: 2.0mm
  • Mounting Hole Pitch: 15mm
