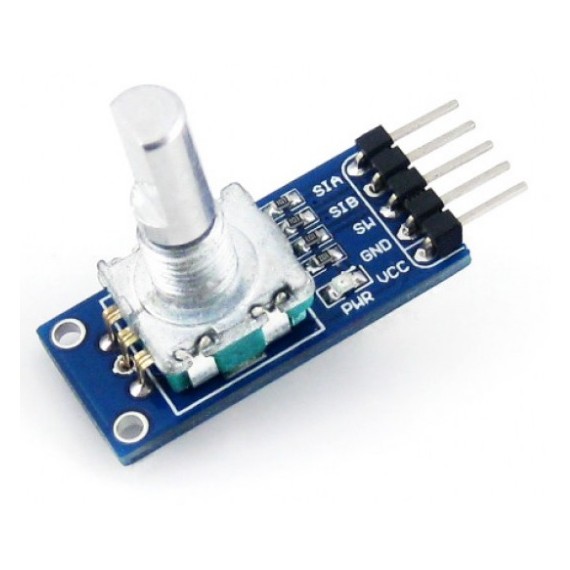

Waveshare Rotation Sensor

Detects clockwise/anti-clockwise rotations: degrees and laps.
31-00009533
Volumetric weight: 0.01kgs
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
3.90
Without VAT 3.15
+
WISHLIST COMPARE

DESCRIPTION

  • Detects clockwise/anti-clockwise rotations: degrees and laps.

EXTRA SPECIFICATIONS

  • Pulses per lap: 15
  • Power: 3.0V ~ 5.3V
  • Mounting holes size: 2.0mm

FEATURES

  • Positioning in Industrial Controls

Dimensions

  • 32.1x15.4mm

Connection

In the case of working with a MCU:

  • VCC ↔ 3.0V ~ 5.3V
  • GND ↔ power supply ground
  • SW ↔ MCU.IO (encoder button status)
  • SIB ↔ MCU.IO (output status)
  • SIA ↔ MCU.IO (output status)
