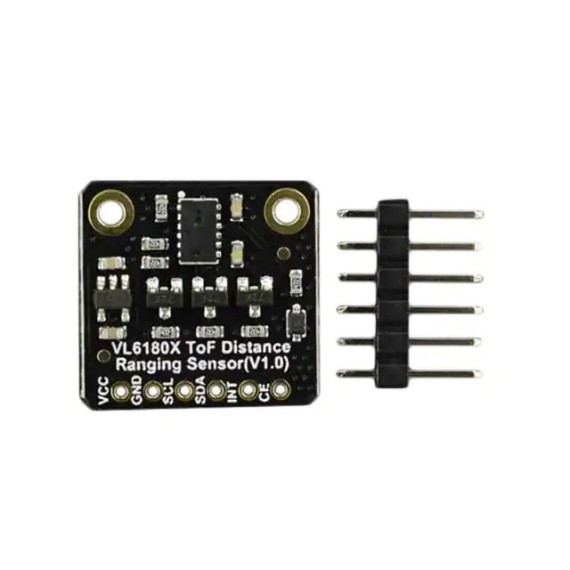

Fermion Distance Sensor (ToF) - VL6180X

by DFROBOT
The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense™technology that allows distance to be accurately measured...
25-00010105
Company: DFROBOT
Part Number: SEN0427
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
8.50
Without VAT 6.85
+
WISHLIST COMPARE

DESCRIPTION

The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense™technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.

Connection Diagram

SPECIFICATIONS

Breadboard Friendly :
Yes
Sensor Type:
  • Luminosity
  • Proximity
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
5mA
Interface:
  • Digital
Communication Protocol:
  • I2C

SPECIFICATIONS

  • Power Supply Voltage: 3.3V~5V
  • Operating Current: <5mA
  • Measuring Distance: 5-100mm
  • Emitter: 940nm invisible laser (VCSEL)
  • I2C Address: 0x29
  • Operating Temperature Range: -20℃~85℃
  • Product Size: 19x18mm

FEATURES

  • Simultaneous measurement of distance and ambient light
  • VCSEL light source
  • Strong anti-interference
