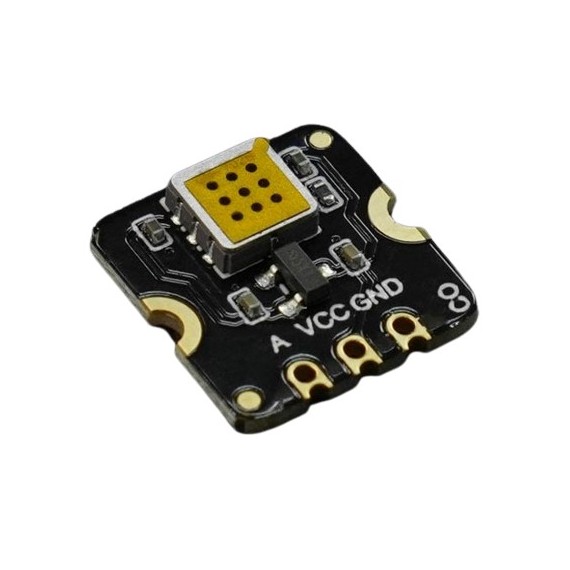

Fermion MEMS Carbon Monoxide CO Gas Detection Sensor (Breakout, 5-5000ppm)

από DFROBOT
Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor employs state-of-the-art micro electromechanical system (MEMS) technology, endowing the sensor with...
25-00016715
Ογκομετρικό βάρος: 0.06kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0564
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.20
Χωρίς ΦΠΑ 5.00
+

ΠΕΡΙΓΡΑΦΗ

Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor employs state-of-the-art micro electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20 mA), minimal heat generation, a short preheating time, and swift response recovery. The sensor can measure carbon monoxide gas concentrations qualitatively and is suitable for carbon monoxide leak alarms and portable carbon monoxide detectors.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Precautions for use



  • Kindly remove the protective film before usage.
  • To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
  • Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
  • Prevent contamination from alkalis, alkali metal salts, and halogens.
  • Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
  • Avoid contact with water, condensation, and freezing.
  • Minimize excessive vibration, impact, and dropping.
  • Please refrain from employing this module in systems that involve personal safety concerns.
  • For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.



Wiring Diagram of Fermion: MEMS CO sensor and Arduino UNO





ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0564
Μικτό Βάρος:
0.06kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
20mA
Διασύνδεση:
  • Αναλογική

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Gas detected: CO
  • Detection range: 5-5000ppm
  • Operating voltage: 3.3-5V
  • Operating current: <20 mA
  • Output signal: Analog voltage
  • Sensitivity: R0(in air)/Rs(in 150ppm CO) ≥ 3
  • Operating temperature: -10-50℃
  • Operating humidity: 15-90%RH (non-condensing)
  • Lifespan: ≥5 years (in air)
  • Dimension:13×13 x 2.5mm/0.0.51×0.51x0.1"

ΔΥΝΑΤΟΤΗΤΕΣ

  • Compact size, measuring only 13*13*2.5mm
  • Low power consumption
  • High sensitivity and rapid response recovery
  • Advanced MEMS technology

APPLICATIONS

  • Petrochemical carbon monoxide detection
  • Metallurgy carbon monoxide detection
  • Mining carbon monoxide detection
  • Environmental protection
