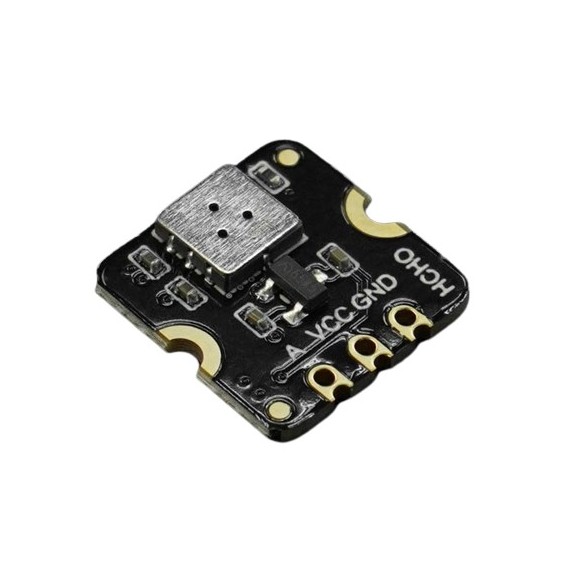

Fermion MEMS Formaldehyde HCHO Gas Detection Sensor (Breakout, 0-3ppm)

από DFROBOT
Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with...
25-00016713
Ογκομετρικό βάρος: 0.06kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0563
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.20
Χωρίς ΦΠΑ 5.00
+

ΠΕΡΙΓΡΑΦΗ

Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery. This sensor qualitatively measures the concentration of formaldehyde gas, making it suitable for applications in air purifiers, HVAC systems, smart wearables, portable detectors, and more.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Precautions for use

  • Kindly remove the protective film before usage.
  • To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
  • Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
  • Prevent contamination from alkalis, alkali metal salts, and halogens.
  • Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
  • Avoid contact with water, condensation, and freezing.
  • Minimize excessive vibration, impact, and dropping.
  • Please refrain from employing this module in systems that involve personal safety concerns.
  • For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

Wiring Diagram of Fermion: MEMS HCHO Sensor and Arduino UNO





ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0563
Μικτό Βάρος:
0.06kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
20mA
Διασύνδεση:
  • Αναλογική

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Gas detected: HCHO
  • Detection range: 0-3ppm
  • Operating voltage: 3.3-5V
  • Operating current: <20mA
  • Output signal: Analog voltage
  • Sensitivity: R0(in air)/Rs(in 0.4ppm HCHO) ≥ 1.8
  • Operating temperature: -10-50℃
  • Operating humidity: 15-90%RH (non-condensing)
  • Lifespan: ≥3 years (in air)
  • Dimension:13×13 x 2.5mm/ 0.0.51×0.51x0.1"

ΔΥΝΑΤΟΤΗΤΕΣ

  • Compact size, measuring only 13*13*2.5mm
  • Low power consumption,operating current <20mA
  • High sensitivity and rapid response recovery
  • Advanced MEMS technology

APPLICATIONS

  • Air purifiers
  • HVAC systems
  • Smart wearables
  • Portable detectors
