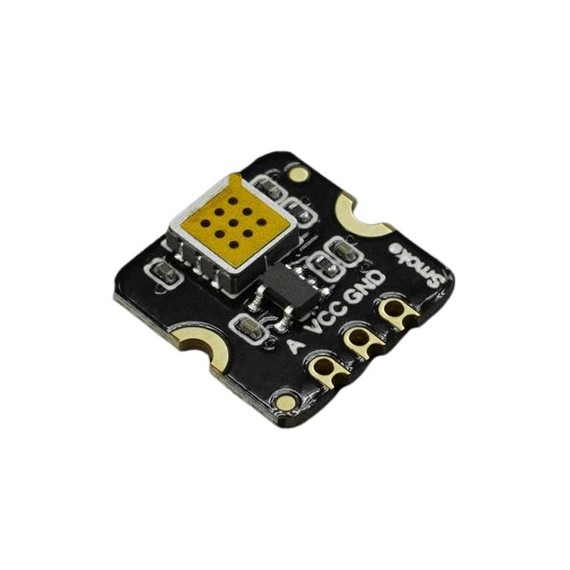

Fermion MEMS Smoke Gas Detection Sensor (Breakout, 10-1000ppm)

από DFROBOT
Fermion: MEMS Smoke Gas Detection Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact...
25-00016714
Ογκομετρικό βάρος: 0.06kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0570
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.20
Χωρίς ΦΠΑ 5.00
+

ΠΕΡΙΓΡΑΦΗ

Fermion: MEMS Smoke Gas Detection Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can measure smoke concentration qualitatively and is suitable for smoke alarm and other application scenarios.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Precautions for use

  • Kindly remove the protective film before usage.
  • To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
  • Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
  • Prevent contamination from alkalis, alkali metal salts, and halogens.
  • Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
  • Avoid contact with water, condensation, and freezing.
  • Minimize excessive vibration, impact, and dropping.
  • Please refrain from employing this module in systems that involve personal safety concerns.
  • For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

Wiring Diagram of Fermion: MEMS Smoke sensor and Arduino UNO







ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0570
Μικτό Βάρος:
0.06kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
20mA
Διασύνδεση:
  • Αναλογική

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Gas detected: EtOH, Smoke
  • Detection range: 10-1000ppm
  • Operating voltage: 3.3-5V
  • Operating current: <20mA
  • Output signal: Analog voltage
  • Sensitivity: R0(in air)/Rs(in 200ppm EtOH) ≥ 3
  • Operating temperature: -10-50℃
  • Operating humidity: 15-90%RH (non-condensing)
  • Lifespan: ≥5 years (in air)
  • Dimension:13×13 x 2.5mm/0.0.51×0.51x0.1”

ΔΥΝΑΤΟΤΗΤΕΣ

  • Compact size, measuring only 13*13*2.5mm
  • Low power consumption, operating current <20mA
  • High sensitivity and rapid response recovery
  • Advanced MEMS technology

APPLICATIONS

  • Smoke Alarm
