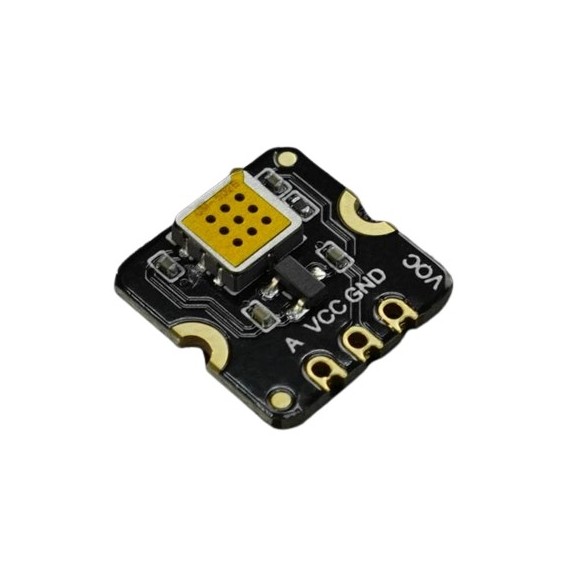

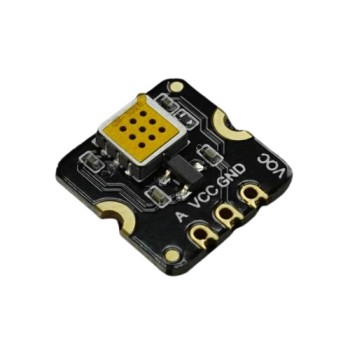

Fermion MEMS Volatile Organic Compounds VOC Gas Detection Sensor (Breakout, 1-500ppm)

από DFROBOT
Fermion: MEMS Volatile Organic Compounds VOC Gas Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with...
25-00016712
Ογκομετρικό βάρος: 0.06kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0566
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.20
Χωρίς ΦΠΑ 5.00
+

ΠΕΡΙΓΡΑΦΗ

Fermion: MEMS Volatile Organic Compounds VOC Gas Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure VOC gas concentration and is suitable for indoor air quality detection, fresh air system, air purifier and other application scenarios.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Precautions for use

  • Kindly remove the protective film before usage.
  • To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
  • Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
  • Prevent contamination from alkalis, alkali metal salts, and halogens.
  • Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
  • Avoid contact with water, condensation, and freezing.
  • Minimize excessive vibration, impact, and dropping.
  • Please refrain from employing this module in systems that involve personal safety concerns.
  • For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

Wiring Diagram of Fermion: MEMS VOC sensor and Arduino UNO







ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0566
Μικτό Βάρος:
0.06kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
20mA
Διασύνδεση:
  • Αναλογική

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Gas detected: ethanol, formaldehyde, toluene, etc
  • Detection range: 1-500ppm
  • Operating voltage: 3.3-5V
  • Operating current: <20mA
  • Output signal: Analog voltage
  • Sensitivity: R0(in air)/Rs(in 150ppm ethanol) ≥ 3
  • Operating temperature: -10-50℃
  • Operating humidity: 15-90%RH (non-condensing)
  • Lifespan: ≥5 years (in air)
  • Dimension:13×13 x 2.5mm/0.0.51×0.51x0.1"

ΔΥΝΑΤΟΤΗΤΕΣ

  • Compact size, measuring only 13*13*2.5mm
  • Low power consumption, operating current <20mA
  • High sensitivity and rapid response recovery
  • Advanced MEMS technology

APPLICATIONS

  • Environmental monitoring: identify the sources and levels of benzene in the ambient air
  • Indoor air quality: measure the concentration of formaldehyde in the indoor air
  • Industrial safety: detect any leaks or spills of tetrachloroethylene
  • Fire detection: detect the early signs of fire and smoke by sensing the changes in the composition and concentration of VOCs in the air.
  • Health applications: measure the amount of acetone in the breath and provide feedback or guidance for diabetes management.
