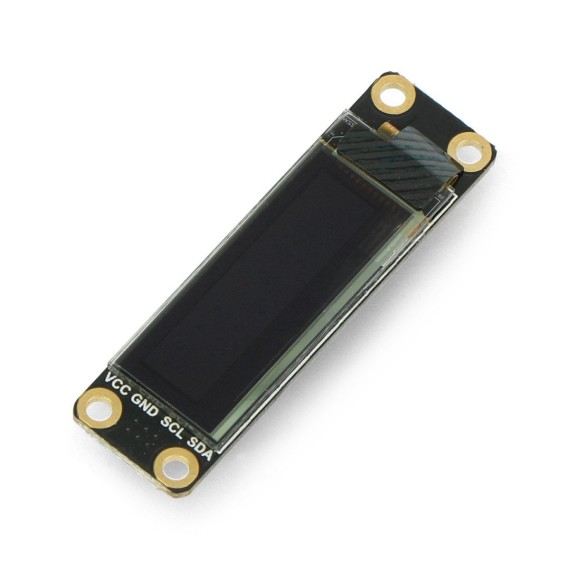

Fermion Monochrome 0.91” 128x32 I2C OLED Display with Chip Pad

από DFROBOT
This OLED display module uses the SSD1306 drive chip, has 128x32 self-illuminating white pixels, and adopts the back chip-mounting pad design. Small size,...
25-00016314
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0647
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.40
Χωρίς ΦΠΑ 10.00
+

ΠΕΡΙΓΡΑΦΗ

This OLED display module uses the SSD1306 drive chip, has 128x32 self-illuminating white pixels, and adopts the back chip-mounting pad design. Small size, the length is 41mm and the width is only 12mm. With its small size, simple wiring, and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.

The display module adopts a high-contrast, low-power OLED display. Full-screen lighting consumes approximately 25mA (3.3V) 25mA (5V) and full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V). It is compatible with controllers such as Arduino UNO, Leonardo, ESP32/ESP8266, FireBettle-M0, and so on. Internal power-on reset processing, I2C communication methods and the chip-mounting pad, so that your welding line will be more convenient and simpler. The module has an ultra-narrow PCB design that is more flexible to match more applications.

ΣΗΜΕΙΩΣΕΙΣ

  • Turn the pixels off when you are not using the display to prevent the use of some pixels too long to darken them, which will cause the brightness uniformity problem.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0647
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
OLED
Μέγεθος Οθόνης:
0.91"
Ανάλυση:
128x32
Χρώματα Οθόνης:
Λευκό
Οθόνη Aφής:
Όχι
Διασύνδεση:
  • I2C

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating voltage: 3.3V to 5V
  • Color: White pixels
  • Number of pixels: 128 columns x 32 rows
  • Interface: I2C
  • Drive chip: SSD1306
  • Brightness: 180 (Typ) cd/m2
  • Full-screen lighting power: approx. 25mA (3.3V) 25mA (5V)
  • Full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V)
  • Operating temperature: -30°C to 70°C
  • Display area: 22.38x5.58mm
  • Mounting hole diameter: 2mm
  • Size: 41x12mm
  • Weight: 2.2 g

ΔΥΝΑΤΟΤΗΤΕΣ

  • Chip-mounting pad
  • Self-illuminating OLED display
  • Controllable pixels and low power consumption
  • Supports power-on reset

Applications

  • Thermometer
  • Desktop weather display
  • Kitchen weighing machine
  • Air quality detector
  • Mini Game consoles
  • Wearable display
