Seeed Grove Oled Display 0.96" 128x64 Yellow/Blue

Κωδικός:

32-00018374

Part Number: 104020249

ΚατασκευαστήςSeeed Studio Part Number104020249

Διαθέσιμο

Αποστολή σε 24 ώρες

€9⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

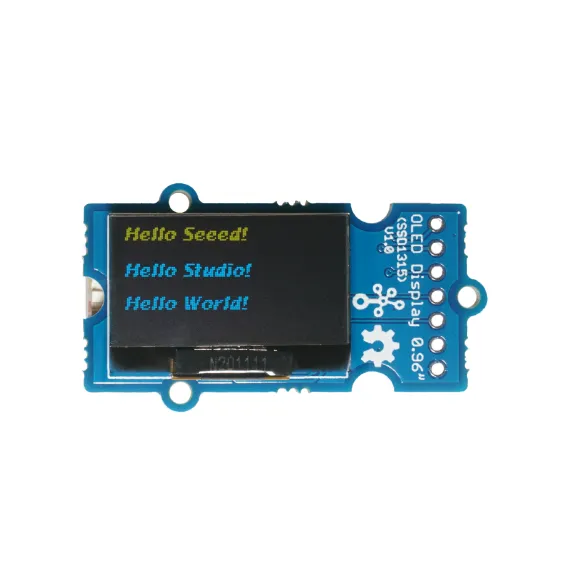

The Grove - OLED Yellow&Blue Display 0.96 is built with a resolution of 128*64px with a blue and yellow bi-color display. It can be light up by either I2C or SPI interface.

Grove - OLED Yellow&Blue Display 0.96 is based on SSD1315 which comes with a blue and yellow bi-color display with 128*64 resolution. Because it is mounted on OLED(Organic Light Emitting Diode), it has self-luminous, high contrast, slim profile compared to LCD , wide viewing angle and low power consumption and many other advantages. The display works on both 3.3V and 5V supply voltage.

It uses the Grove port, making it easier to use, just plug-and-play by using the grove jumper. Grove - OLED Yellow&Blue Display supports I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want.

More than 400 Grove modules have been developed, covering a wide range of applications that can fulfill various needs. Explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.

Features

Low power consumption: 3/5VSupply, suitable for many microcontrollers and SBCs
High contrast： Based on SSD1315it comes in Yellow and Blue colors 128×64
High compatibility: support I2Cand SPI Interface
Easy to use: compatible with Grove port, just plug-and-play

Files

Specifications

Parameter	Value
Input voltage	3.3V / 5V
Output Voltage	0 ~ 2.3V
Pixels	128 x 64
Temperature Range	-40℃ ~ +85 ℃
Interface	I2C/SPI
