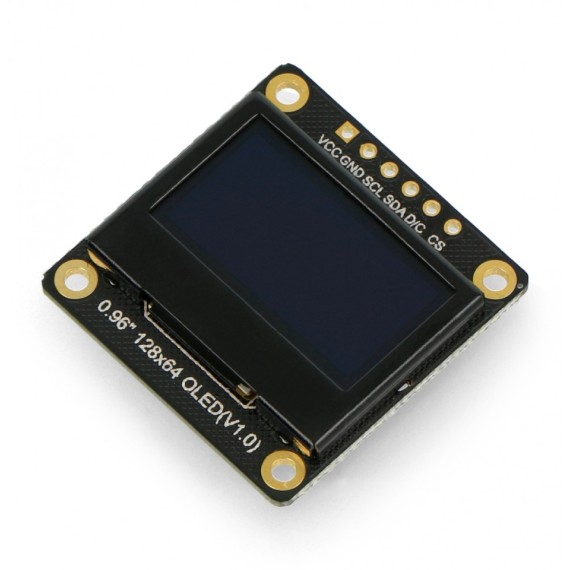

Fermion Monochrome 0.96" 128x64 I2C/SPI OLED Display

από DFROBOT
This 0.96” OLED display module uses the SSD1306 drive chip, has 128x64 self-illuminating white pixels, and adopts two communication methods: SPI/ I2C, I2C...
25-00016312
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0650
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
18.00
Χωρίς ΦΠΑ 14.52
+

ΠΕΡΙΓΡΑΦΗ

This 0.96” OLED display module uses the SSD1306 drive chip, has 128x64 self-illuminating white pixels, and adopts two communication methods: SPI/ I2C, I2C in default. With its high contrast, simple wiring and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.

This 0.96” OLED display module supports both 3.3V and 5V. The display module adopts a high-contrast, low-power OLED display. It is compatible with controllers such as Arduino UNO, Leonardo, ESP32/ESP8266, FireBettle-M0 and so on. Internal power-on reset processing, I2C communication methods, so that your welding line will be more convenient and simpler. If you want to change I2C communication to SPI, you just need to change the resistor position. In addition, the display is in an aluminum frame package that protects the screen from damage, and also prevents you from scratching that caused by the glass edge of the screen.

ΣΗΜΕΙΩΣΕΙΣ

  • Turn the pixels off when you are not using the display to prevent the use of some pixels too long to darken them, which will cause the brightness uniformity problem.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0650
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating voltage: 3.3V to 5V
  • Color: white pixels
  • Number of pixels: 128 columns x 64 rows
  • Interface: I2C (in default) / SPI
  • I2C address: 0x3C
  • Drive chip: SSD1306
  • Brightness: 180 (Typ) cd/m2
  • Full-screen lighting power:
    • approx. 24mA*3.3V/5V(I2C);
    • approx. 27mA*3.3V/5V(SPI)
  • Full-screen off power consumption:
    • approx. 2mA*3.3V/5V(I2C)
    • approx. 2.87mA*3.3V/5V(SPI)
  • Operating temperature: -30°C to 70°C
  • Display area: 21.744x10.864mm
  • Size: 30.00x30.00mm
  • Weight: 4.2 g

ΔΥΝΑΤΟΤΗΤΕΣ

  • Self-illuminating OLED display
  • Controllable pixels and low power consumption
  • I2C/SPI communication, I2C in default
  • Supports power-on reset

Applications

  • Thermometer
  • Desktop weather display
  • Kitchen weighing machine
  • Air quality detector
  • Mini Game consoles
  • Wearable display
