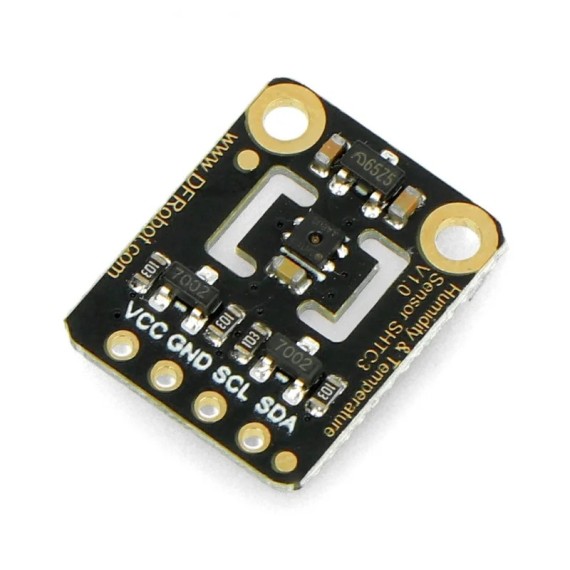

Fermion Temperature & Humidity Sensor - SHTC3

25-00016651
SEN0414
CompanyDFRobot Part NumberSEN0414
In Stock
Ships in 24 Hours
780
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

The SHTC3 digital humidity sensor from Sensirion builds on the success of the proven SHTC1 sensor and offers consistent high accuracy within the measuring range.

The sensor covers a humidity measurement range of 0 to 100%RH and a temperature detection range of -40°C to 125°C with a typical accuracy of ±2%RH and ±0.2℃.

The board supply voltage of 3.3V to 5V and a current consumption below 0.15mA in low power mode make the SHTC3 perfectly suitable for mobile or wireless battery-driven applications.

THE PACKAGE INCLUDES

  • Fermion: SHTC3 Humidity & Temperature Sensor x1
  • 2.54 Black Single-row 4Pin Connector x1

Connection Diagram

  • Communication Interface: I2C
  • Operating Voltage: 3.3V~5V
  • Operating Current: 0.45mA
  • Humidity Measurement Range: 0~100%RH
  • Humidity Measurement Accuracy: ±2%
  • Temperature Measurement Range: -40~+125℃ (-40~+275℉)
  • Temperature Measurement Range: ±0.2℃
  • Response Time: 8s(tau63%)
  • Dimension: 14x17mm
  • Mounting Hole Size: M2 (2mm)
  • Mounting Hole Pitch: 10mm

  • High accuracy
  • With low power mode

Applications

  • HVAC
  • Automobiles
  • Data loggers
  • Weather stations
  • Home appliances

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
DFRobot
G. Weight
0.022kg
Sensor Type
  • Humidity
  • Temperature
Typical Input Voltage
  • 3.3VDC
  • 5VDC
Oparating Current
0.5mA
Interface
  • Digital
Communication Protocol
  • I2C
